Liberty AV Solutions DL-HD70
DigitaLinx HDMI Over Twisted Pair Extender Set

OUR PART #:  DL-HD70

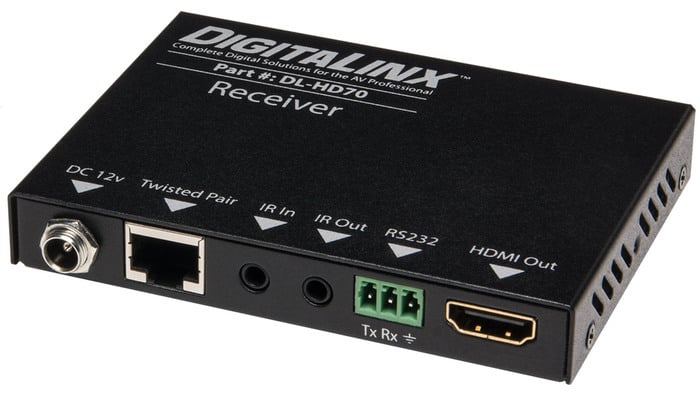

Liberty AV Solutions' DigitaLinx DL-HD70 HDBaseT extender set transmits HDMI, bidirectional IR, and RS232 up to 70 meters away using a single twisted pair cable.
Learn More
Our Price: $314.96
List Price: $349.95
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Liberty AV Solutions DL-HD70
Qty:
In Stock

Similar Products

Liberty AV Solutions' DigitaLinx DL-HD70 HDBaseT extender set transmits HDMI, bidirectional IR, and RS232 up to 70 meters away using a single twisted pair cable.

Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations.  Flexible power design allows the units to be powered at either the TX or RX end, and only one power supply is required.  The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.

The DL-HD70 is sold only as a set.  The individual transmitter and receiver are not compatible with other HDBaseT devices.

Applications:

  • Uses any Cat5/5e/6/6A twisted pair cabling
  • Extension of HDMI and control signals
  • Limited access to power for extenders on both ends
  • Ideal for Digital Signage, Home Theater, Commercial Video Systems

Liberty AV Solutions DL-HD70 Features:

  • HDMI transmission up to 230 feet (70m)
  • 1080p, 4Kx2K & 3D compatible
  • CEC supported
  • Built-in surge protection
  • Diagnostic LEDs
  • HDCP compliant
  • Bidirectional Wideband IR and RS232 pass through
  • Flexible power design (use power supply at TX or RX)
  • Locking Power Connector
  • Country of Origin: China
