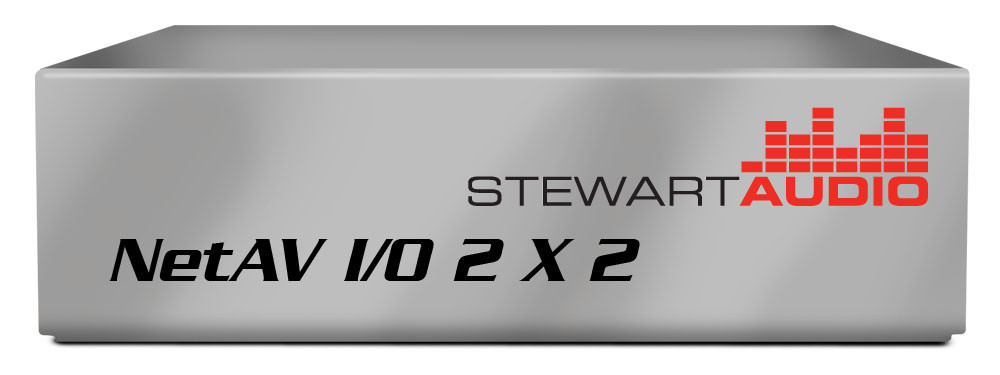

Stewart Audio NetAV I/O 2x2
2x2 Network Enabled On/Off Ramp Device with Dante

OUR PART #:  NET-AV-I/O-2X2-DANTE

The Stewart Audio NetAV I/O 2x2 is a network enabled bridge product with 2 channels of analog to digital on to the network and 2 channels of digital to analog off of the network.
Learn More
Our Price: $519.00
List Price: $609.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Stewart Audio NetAV I/O 2x2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Stewart Audio NetAV I/O 2x2 is a network enabled bridge product with 2 channels of analog to digital on to the network and 2 channels of digital to analog off of the network. This simple product is ideal for integrating legacy devices into your Dante™ network.

The NetAV I/O 2x2 is a simple digital on or off ramp for Dante applications. With the world fast moving into the digital age there remain plenty of legacy devices that are analog, the NetAV I/O 2x2 is the easiest way to bring them into the digital realm. With two balanced analog inputs (line level, Mic and 24V phantom power) that are automatically encoded, any analog audio signal can be made available to the network. By the same token any Dante signal on the network can be converted to an analog output (2 channels) for use by legacy devices requiring an analog signal. This solution makes the use of Dante audio even more flexible by integrating existing analog equipment into the design. One the many benefits of using a Networked Audio system is the ability to route signals to anywhere on the network. The NetAV I/O is a critical bridge device at the edge of the network conveying signals on and off.

Stewart Audio NetAV I/O 2x2 Features:

  • Sub Compact 1/4 rack package
  • Two mic/line inputs with selectable pre-gain and phantom power
  • Two analog outputs from Dante network
  • Configurable via Control Center Software
  • External inline power supply
  • Made in the USA

Stewart Audio NetAV I/O 2x2 Specifications:

  • Input Connectors: RJ45, Euro Block
  • Output Connectors: RJ45, Euro Block
  • Power Supply: External In-Line 5VDC
  • Cooling: Convection-Cooling
  • Construction: Aluminum Chassis
  • Mic / Line Input: Type Balanced & RF Filtered EuroBlock
  • Phantom Power: +24V, selectable via DIP Switch
  • Mic / Line Gain: 0dB, +28dB switch selectable
  • Input Impedance: 20K balanced, 10K unbalanced, 1.2K when Phantom Power is on
  • Equivalent Input Noise: -110dBu
  • Maximum Input Levels: +6dBu @ 0dB Gain
  • Output Type: Balanced line level
  • Output Gain: 0dB nominal
  • Output S/N: >100dB
  • Maximum Output Level: +6dBu
  • System THD: <.05% at any gain
  • Input signal: 3dB below maximum
  • Operating Temperatures: 0°C - 40°C
  • Dimensions (HxWxD): 1.30" x 4.80" x 3.30"
  • Weight: 0.57 lbs
