Product Overview
The E.I.A. compliant, UL Listed (Standard 1678) sectional wall-mount rack consists of a sturdy steel backbox and mounting section that are boxed separately for convenience—the backbox can be fieldinstalled while the mounting section is loaded with equipment at the shop. Made in U.S.A. with 100% certified U.S. steel. Includes PilotPointTM screws with 5.1 hardness and captive washers (order RSP series for extra hardware).
Lowell Manufacturing Company LWR-3519 Features:

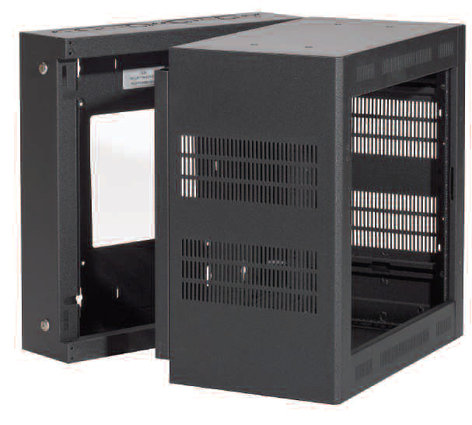

- Mounting Section: The mounting section provides greater than 90-degree open-swing access for servicing and requires a minimum clearance of 13.06 in. [332mm], plus 1 in. [25mm] if optional front door is used. It mounts to the backbox from the inside using two heavy duty, spring-loaded L-pins, providing fast, secure installation without externally visible hinges. The stability of the L-pin design combined with the section’s fully gusseted corners and triple formed side-to bottom, side-to-top wrap design achieve strength equivalent to 3/16 in. [5mm] thick steel for dependable support. A roller-closure allows the mounting section to seat in closed position without mandatory locking. Includes one-pair of adjustable rails (tapped 10-32) recessed 0.625 in. [16mm] to allow 1.375 in. [35mm] space between equipment knobs and (optional) front door. Integral top and bottom rails on E.I.A. spacing for mounting or lacing are also included. Vented sides have notches to accommodate optional fan kit (ex. FW1-KIT). Four knockouts for wireless antennae on top and bottom.
- Note: LWR series racks at this depth have beveled corners.
- Backbox: The 5.80 in. [147mm] box has 16 in. [406mm] mounting centers, a 10 in. x10 in. [254mm x 254mm] opening to mount over electrical pull boxes, and embossed dimples on the back plane for installation of board-mounted accessories. It features removable knockout panels at top and bottom and two keyed locks on one side (keyed differently than optional front door).
Lowell Manufacturing Company LWR-3519 Specifications:
- Racking Space:61.25 in / 1556 mm / 35U
- Mtg. Section Depth: 13.06 in / 332 mm
- Backbox Depth: 5.80 in / 147 mm
- Usable Depth: 16 in / 406 mm
- Overall Depth: 19.05 in / 484 mm
- Overall Height: 67.375 in / 1711 mm
- Overall Width: 23.06 / 586 mm
- Load Capacity: 300 lbs. / 136 kg
