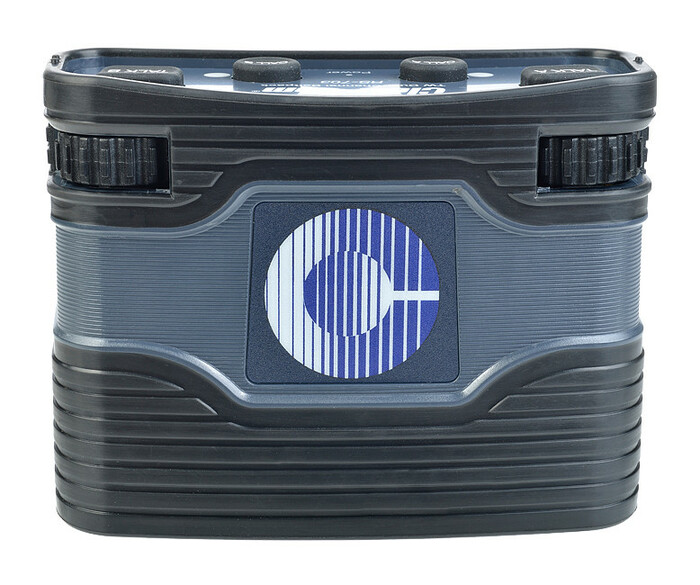

Clear-Com RS703
2-Channel Belt Pack

OUR PART #:  RS703

The RS-703* is a two-channel analog beltpack with an XLR-3 line connector and XLR-4M headset connector.
Learn More
Our Price: $432.00
List Price: $480.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Clear-Com RS703
Qty:
In Stock

Similar Products

The RS-703* is a two-channel analog beltpack with an XLR-3 line connector and XLR-4M headset connector. A mic preamp with a dynamic range of 130 db enables intelligible voice communication for every volume level, from a whisper to a shout. The beltpack also combines high headroom, low noise audio and shaped frequency contour (Clear-Com Sound) to deliver crystal-clear audio. A thumbwheel level adjustment is available for Program In, as welll as a 3.5mm TRS jack for Program Input.

The RS-703 is compatible with all Encore partyline products, as well as the PL-Pro line and other TW partyline systems via Encore interfaces.

*A TWC-701 interface is required to connect beltpacks to main station. Only one interface is necessary for each system.

Clear-Com RS703 Specifications:

  • Microphone Pre-Amplifier
    • Mic to Line (without limiter acting) Frequency Response: 280 – 15k Hz ± 3dB
    • Microphone output to line – Audio Level (-50dBm Electret input): -9dBm
    • Microphone output to line – Distortion: <0.1%
    • Microphone output to line – Signal to Noise: >65dB
    • Clear-Com Sound: Yes
  • Headphone Amplifier
    • Frequency Response – Line to Headphone: 150 – 20k Hz ± 3dB
    • Headphone input from line – Audio Level (-9dBm Electret input): 7dBm
    • Headphone input from line – Distortion: <0.5%
    • Headphone input from line – Signal to Noise: >50dB
    • Earphone to Mic – Crosstalk: >80dB
    • Sidetone – Adjustment Range (-80db mic input): >45dB
  • Keypad Indicators
    • Power: Green LED
    • Talk A: Green LED
    • Call A: Orange LED
    • Talk B: Green LED
    • Call B: Orange LED
  • Connectors
    • Intercom Line: (2) 3-pin XLR–M–F Ch. 1 2-Wire
      • Intercom Channel Pin 1: Common; Pin 2: PL Power (+28VDC)/PL Ch-A; Pin 3: PL Ch-B
    • Headset: 4-pin XLR–M
      • Headset Connector; Pin 1: Mic - (Mic Common); Pin 2: Mic +; Pin 3: Spkr-; Pin 4: Spkr+ (&0.5*VCCDC Supply between Pin 4 & Pin 1)
    • Program Audio Input: 3.5mm TRS jack
  • Power Requirements
    • Voltage input range: 12 MIN - 30 MAX VDC
    • Current (all inputs off): ~26mA MAX
    • Call Voltages – Call Voltage: 16.5V dc
    • Call Voltages – Min Call Voltage needed: 3.3V
  • Environmental
    • Operating Temp Range: 0°C - 70°C (32°F - 158°F)
    • Storage Temp Range: 0°C - 70°C (32°F - 158°F)
    • Relative Humidity: 0 - 90% non condensing
  • Dimensions: 3.4"(H) H x 4.5"(W) x 1.7"(D)
  • Weight: 0.68 lbs (0.31 kg)
