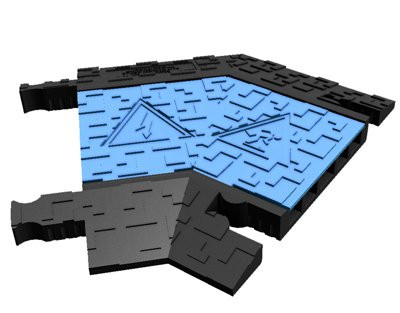

Lex Products Corp PRTR-5
PowerAmp Cable Crossover 45° Right Turn Unit


Heavy duty, 5-channel...
Learn More
Our Price: $161.56
List Price: $197.25
You save 18%!
Write the first review.
Lex Products Corp PRTR-5
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Heavy duty, 5-channel, modular 45º left and right turn units with hinged lids and rugged industry standard connectors are designed to mate with crossover cable protectors and end boots to provide alternate configurations for design flexibility.


  • Protects cables and hoses from damage when run across roads, parking lots,sidewalks and pathways, providing safe crossing for pedestrian and vehicle traffic.

Lex Products Corp PRTL-5 Features:

  • Heavy-duty, non-conductive polyrethane constructon provides safe crossing for pedestrians and vehicles while protecting electrical cables and hose lines
  • Rugged industry standard connectors with exclusive "slip notch" fritction release design provides easy mating and un-mating
  • Mates with major cable protector brands and products
  • 5-channel design can accomodate up to 1.25" diameter cables and hoses
  • 1.625" wide center channel allows for up to #2AWG 5-wire banded sets
  • Exclusive tread design provides excellent traction
  • Hinged lid provides easy access for insertion and removal of cables and hoses
  • Made from UV stabilized material for prolonged use in direct sunlight
  • High-visibility blue lid and black base

Lex Products Corp PRTL-5 Specifications:

  • Length: 25"
  • Width: 19.75"
  • Height: 2"
  • Weight: 15.5lbs.
  • Slot Height: (5) 1.25" Channels
  • Slot Width: (4) 1.25" Channels / (1) 1.625"Center Channel
  • Material: Base & Lid: Polyurethane / HingePin: Reinforced Fiberglass
  • Load Capacity Per Tire/Axle: 16ZZ300 lbs. PerTire / 32,000 lbs. Per Axle at 70ºF
  • Safety Warning Symbols: Per ANSIZ535.3-2011-Molded in Lid
  • Operating Temperature: -40ºF to 120ºF / -40ºC to 48ºC
