Lex Products Corp PRTL-5

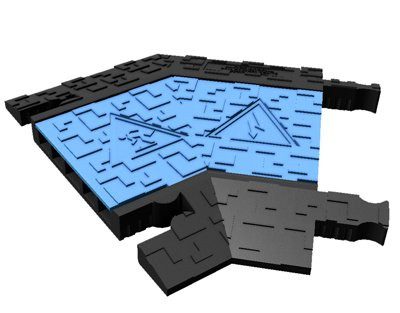

PowerAmp Cable Crossover 45° Left Turn Unit

OUR PART #:  PRTL-5

Heavy duty, 5-channel...
Learn More
Our Price: $161.56
List Price: $197.25
You save 18%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lex Products Corp PRTL-5
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Heavy duty, 5-channel, modular 45º left and right turn units with hinged lids and rugged industry standard connectors are designed to mate with crossover cable protectors and end boots to provide alternate configurations for design flexibility.

Applications:

  • Protects cables and hoses from damage when run across roads, parking lots, sidewalks and pathways, providing safe crossing for pedestrian and vehicle traffic

Lex Products Corp PRTL-5 Features:

  • Heavy-duty, non-conductive polyrethane constructon provides safe crossing for pedestrians and vehicles while protecting electrical cables and hose lines
  • Rugged industry standard connectors with exclusive "slip notch" fritction release design provides easy mating and un-mating
  • Mates with major cable protector brands and products
  • 5-channel design can accomodate up to 1.25" diameter cables and hoses
  • 1.625" wide center channel allows for up to #2AWG 5-wire banded sets
  • Exclusive tread design provides excellent traction
  • Hinged lid provides easy access for insertion and removal of cables and hoses
  • Made from UV stabilized material for prolonged use indirect sunlight
  • High-visibility blue lid and black base

Lex Products Corp PRTL-5 Specifications:

  • Length: 25"
  • Width: 19.75"
  • Height: 2"
  • Weight: 15.5lbs.
  • Slot Height: (5) 1.25" Channels
  • Slot Width: (4) 1.25" Channels / (1) 1.625"Center Channel
  • Material: Base & Lid: Polyurethane / HingePin: Reinforced Fiberglass
  • Load Capacity Per Tire/Axle: 16ZZ300 lbs. PerTire / 32,000 lbs. Per Axle at 70ºF
  • Safety Warning Symbols: Per ANSIZ535.3-2011-Molded in Lid
  • Operating Temperature: -40ºF to 120ºF (-40ºC to 48ºC)
