Product Overview
Tripp Lite's Medical-Grade Mobile Power Retrofit Kit provides UL 60601-1 compliance (a required patient shock-prevention measure) for all connected mobile electronic devices. The Mobile Power Retrofit Kit includes everything needed to add AC power to medical carts. The kit's power supply features an isolation transformer that reduces the cumulative shock potential of connected equipment, helping to ensure UL 60601-1 compliance. The included 36 amp-hour battery module provides long-lasting mobile power. Included PowerAlert Software saves valuable patient data from loss or corruption if the cart is left unattended and battery power is depleted. The Mobile Power Retrofit Kit also includes a remote user interface (RUI), mounting hardware and standard cabling.
Tripp Lite's Medical-Grade Mobile Power Retrofit Kit is fully compatible with most popular carts by AFC, Anthro, Datalux, GCX, Hergo, Humanscale, Jaco, Knurr, Stinger and more.

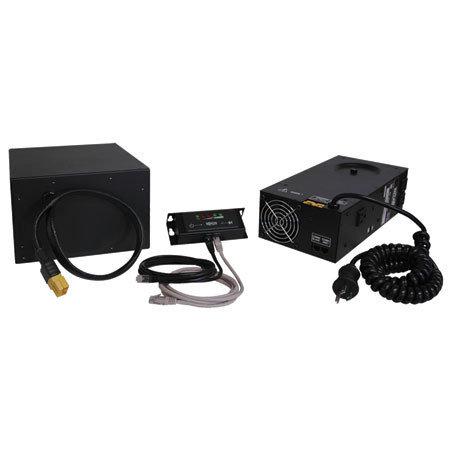

Tripp-Lite HCRK-36 Includes:
- Medical-Grade Mobile Power Supply
- 36-amp hour user-replaceable Battery Module and cabling
- PowerAlert Data-Saving Software CD and USB cable
- Remote User Interface (RUI) and cabling
- Mounting Hardware Kit and owner's manual with warranty information
Tripp-Lite HCRK-36 Features:
- Provides UL 60601-1 compliance for connected mobile equipment (used in every sector of healthcare facilities, both inside and outside of patient-care areas)
- Adds reliable mobile AC power source for medical carts
- Medical-Grade Mobile Power Supply (included) features an isolation transformer, providing UL 60601-1 compliance for connected equipment
- The Power Supply's advanced 3-stage charger recharges batteries faster and safer than conventional chargers
- The Power Supply's internal Automatic Transfer Switch (ATS) allows the power supply to simultaneously run connected equipment while recharging the battery module
- The Power Supply also features 3 NEMA 5-15R AC outlets, a 10-ft. coiled AC input cord with a hospital-grade NEMA 5-15PHG plug, a USB communication port and a compact, all-metal housing that stands up to the most demanding environments
- 36-amp hour user-replaceable Battery Module (included) provides long-lasting mobile power. Maintenance-free, spill-/leak-proof sealed lead-acid (SLA) AGM battery features simple, plug-in connection with included cable
- PowerAlert Data-Saving Software (included) automatically saves valuable patient data from loss or corruption if the cart is left unattended and battery power is depleted. Included cable connects the Power Supply to any cart-mounted computer (desktop or laptop)
- Remote User Interface (RUI) displays output and battery charge status at a glance. Includes on/off and alarm-mute switches. Mounts anywhere on the cart for easy access with included mounting material and cable
- Mounting Hardware Kit retrofits most standard medical carts from AFC, Anthro, Datalux, GCX, Hergo, Humanscale, Jaco, Knurr, Stinger and more
- Typical Application: Medical-Grade mobile AC power supply for medical carts used in every sector of healthcare facilities--both inside and outside of patient-care areas. Provides mobile power and UL 60601-1 compliance for a variety of cart-mounted electronic devices: computers (laptop or desktop), scanners, diagnostic equipment and more.
Tripp-Lite HCRK-36 Specifications:
- Intended Application Hospitals & Medical Facilities
- Style Heavy-duty with built-in battery charger
- Output:
- Frequency Compatibility 60 Hz
- Output (Watts) 300
- Continuous Output Capacity (Watts) 300
- Peak Output Capacity (Watts) 750
- Output Nominal Voltage 120V
- Outlet Quantity / Type 3 NEMA 5-15R
- Number of Outlets 3
- Input:
- Nominal Input Voltage(s) Supported 120V AC
- Recommended Electrical Service 15A, 120V
- Input Connection Type NEMA 5-15P-HG Hospital-Grade
- Input Cord Length (ft.) 10
- Input Cord Length (m) 3.05
- Voltage Compatibility (VAC) 120
- Battery:
- DC System Voltage (VDC) 12
- Battery Charge Equal to discharge time. Includes advanced 3-stage (10A) battery charger
- LEDs Alarms and Switches:
- Audible Alarm Low Battery Alarm
- Switches On Remote User Interface (RUI): On/Off Switch and Alarm-Mute Switch
- Front Panel LEDs On Remote User Interface (RUI): Output AC Power, Battery Charge Level and Battery Charging Status
- Surge/Npoise Suppression:
- EMI / RFI AC Noise Suppression Yes
- Physical:
- Shipping Dimensions (hwd / in.) 13 x 24 x 26
- Shipping Dimensions (hwd / cm) 33.02 x 60.96 x 66.04
- Shipping Weight (lbs.) 72.4
- Shipping Weight (kg) 32.8
- Cooling Method Fan
- Material of Construction Power Supply and Battery Module: metal
- Form Factors Supported Retrofits most standard medical cart configurations
- Communications:
- Network Monitoring Port USB
- Special Features:
- Remote Control Capability Yes
- Certifications:
- Certifications Tested, certified and compliant to UL 60601-1, CAN/CSA-C22.2 No. 601.1-M90 and UL 1778 by TUV
- Warranty: Product Warranty Period (Worldwide) 2-year power module and 6-month battery module limited warranty
