The Light Source MTP20.5MHB
20.5" 1-Ton Multi-Hole Mega-Truss Pick in Black

OUR PART #:  MTP20.5MHB

1" x 6" x 21-7/8" 6061T-6 Aluminum CNC machined with pockets to support one piece of 20.5" truss.
Learn More
Our Price: $196.77
List Price: $265.00
You save 26%!
Write the first review.
The Light Source MTP20.5MHB
Qty:
Usually ships in 7-14 business days.

Related Products

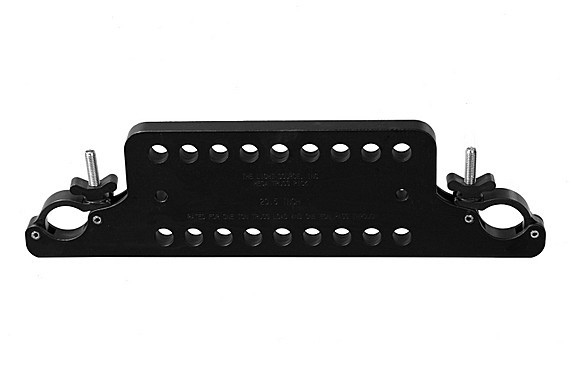

1" x 6" x 21-7/8" 6061T-6 Aluminum CNC machined with pockets to support one piece of 20.5" truss. Truss is secured by two aluminum pivoting links, half inch swivel bolts, and our solid wing nuts. Has two rigging holes for shackles, motor, or chain hook. The Mega-Truss Pick will suspend one ton of truss, and an additional one ton load suspended under the truss.

The Mega-Truss Pick has one top and one bottom rigging hole for attaching the truss to a shackle, motor, or chain hook. The Mega-Truss Pick will suspend up to one ton of truss load, plus an additional one ton load suspended under the truss. The Mega-Truss Pick weighs less than 4 pounds for the 12" truss version. Fits 5/8" Shackle and larger. Other models are available for 12",16", 18", 24", and 30" truss.

NOTE: These do not fit a Global Truss or Applied Truss.

The Light Source MTP20.5MHB Specifications:

  • Safe Vertical Working Load: 1 ton
  • Hardware: 1/2"-13 steel swivel eyebolts with our solid aluminum wing nuts
  • Dimensions:
    • 1" x 6" x 21-7/8"
    • Actual center hole is 1.5" wide
    • Actual single multi-hole is 5/8" wide
  • Weight: 8.6 lbs
