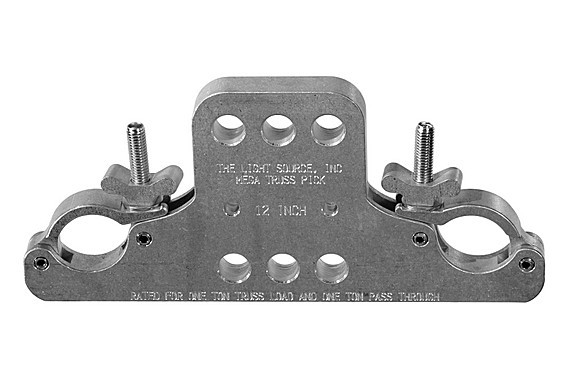

The Light Source MTP12MH
12" 1-Ton Multi-Hole Mega-Truss Pick in Aluminum

OUR PART #  MTP12MH

Our Price: $114.75
List Price: $180.00
You save 36%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Mega-Truss Pick is CNC machined from solid 1? Ă— 6? 6061 T-6 aluminum billet. Two pockets cut into the Mega-Truss Pick have coupler style aluminum pivoting links, half inch swivel bolts, and our solid wing nuts to completely wrap around the truss tube to secure it.

The Mega-Truss Pick has one top and one bottom rigging hole for attaching the truss to a shackle, motor, or chain hook. The Mega-Truss Pick will suspend up to one ton of truss load, plus an additional one ton load suspended under the truss. The Mega-Truss Pick weighs less than 4 pounds for the 12" truss version. Fits 5/8" Shackle and larger. Other models are available for 16", 18", 24", and 30" truss.

NOTE: These do not fit a Global Truss or Applied Truss.

The Light Source MTP12MH Specifications:

  • Safe Vertical Working Load: 1 ton truss / 2 ton total
  • Hardware: 1/2"-13 steel swivel eyebolts, with our solid aluminum wing nuts.
  • Dimensions (WxHxL):
    • 1" x 6" x 13-3/8"
    • Single Hole (actual hole )- 1.5" wide
    • Multi Hole (actual hole)- 5/8" wide
  • Weight: 4.15 lbs

The Light Source MTP12MH
12" 1-Ton Multi-Hole Mega-Truss Pick in Aluminum

OUR PART #  MTP12MH

Product Information:

The Mega-Truss Pick is CNC machined from solid 1? Ă— 6? 6061 T-6 aluminum billet. Two pockets cut into the Mega-Truss Pick have coupler style aluminum pivoting links, half inch swivel bolts, and our solid wing nuts to completely wrap around the truss tube to secure it.

The Mega-Truss Pick has one top and one bottom rigging hole for attaching the truss to a shackle, motor, or chain hook. The Mega-Truss Pick will suspend up to one ton of truss load, plus an additional one ton load suspended under the truss. The Mega-Truss Pick weighs less than 4 pounds for the 12" truss version. Fits 5/8" Shackle and larger. Other models are available for 16", 18", 24", and 30" truss.

NOTE: These do not fit a Global Truss or Applied Truss.

The Light Source MTP12MH Specifications:

  • Safe Vertical Working Load: 1 ton truss / 2 ton total
  • Hardware: 1/2"-13 steel swivel eyebolts, with our solid aluminum wing nuts.
  • Dimensions (WxHxL):
    • 1" x 6" x 13-3/8"
    • Single Hole (actual hole )- 1.5" wide
    • Multi Hole (actual hole)- 5/8" wide
  • Weight: 4.15 lbs
