The Light Source MTP12
12" 1-Ton Mega-Truss Pick in Aluminum

OUR PART #:  MTP12

The Mega-Truss Pick is CNC machined from solid 1? Ă— 6? 6061 T-6 aluminum billet.
Learn More
Our Price: $115.09
List Price: $155.00
You save 26%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

The Light Source MTP12
Qty:
In Stock

Similar Products

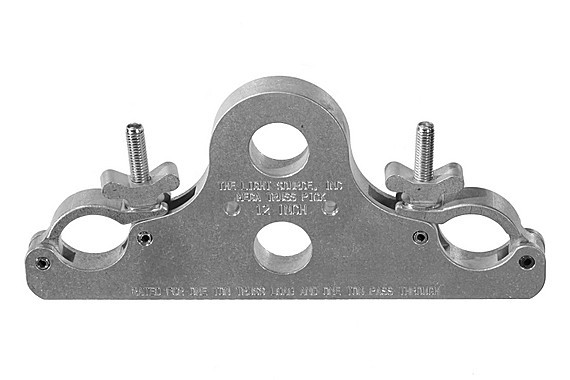

The Mega-Truss Pick is CNC machined from solid 1? Ă— 6? 6061 T-6 aluminum billet. Two pockets cut into the Mega-Truss Pick have coupler style aluminum pivoting links, half inch swivel bolts, and our solid wing nuts to completely wrap around the truss tube to secure it.

The Mega-Truss Pick has one top and one bottom rigging hole for attaching the truss to a shackle, motor, or chain hook. The Mega-Truss Pick will suspend up to one ton of truss load, plus an additional one ton load suspended under the truss. The Mega-Truss Pick weighs less than 4 pounds for the 12" truss version. Fits 5/8" Shackle and larger. Other models are available for 16", 18", 24", and 30" truss.

NOTE: These do not fit a Global Truss or Applied Truss.

The Light Source MTP12 Specifications:

  • Safe Vertical Working Load: 1 ton truss / 2 tontotal
  • Hardware: 1/2"-13 steel swivel eyebolts, withour solid aluminum wing nuts.
  • Dimensions:
    • 1" thick x 6" tall x 13-3/8" long
    • Single Hole (actual hole )- 1.5" wide
    • Multi Hole (actual hole)- 5/8" wide
  • Weight: 4.15 lbs
