The Light Source MLB
Mega-Coupler in Black

OUR PART #  MLB-LIGHT-SOURCE

Our Price: $19.24
List Price: $32.00
You save 40%! (Low Price Guarantee)
In Stock

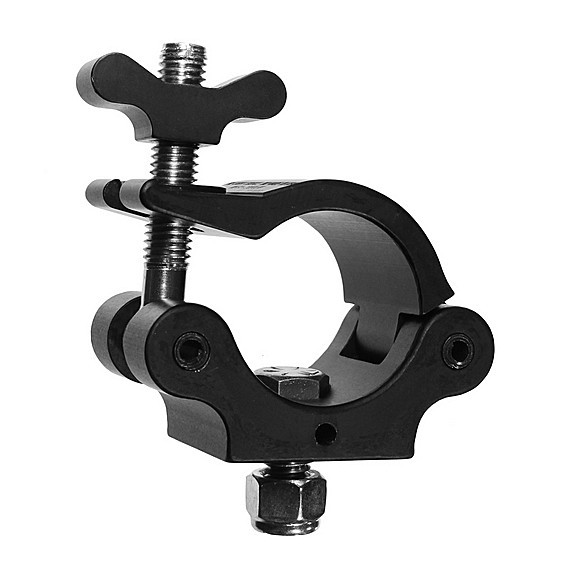

The standard Black Mega-Coupler # MLB. Has a 1/2? × 1 1/4" Hex Head Bolt with the Light Source Wing Nut.

The Mega-Coupler has solid nut tabs that won’t break off. Mega-Coupler uses standard half inch by 1-1/4 inch long hex head grade 8 bolts to secure your load. Bolt head locks into hex milled pocket so that you can tighten the nyloc nut while the clamp is installed. Has industry compatible 14 mm thick base. The Mega-Coupler fastens from (1-1/4" Pipe) 1.66" OD to 2 " OD truss tube.

The Light Source MLB Specifications:

  • Minimum Size: 1.25" pipe, 1.66" OD pipe
  • Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" ODtruss tube
  • Safe Vertical Working Load: 1,100 lb 500kg
  • Standard hardware:
    • 1/2-13 × 1 1/4" Hex Head grade 8 zinc plated steel bolt with nylock nut
    • 1" Belleville Washer
  • Weight: 1.2 Pounds

The Light Source MLB
Mega-Coupler in Black

OUR PART #  MLB-LIGHT-SOURCE

Product Information:

The standard Black Mega-Coupler # MLB. Has a 1/2? × 1 1/4" Hex Head Bolt with the Light Source Wing Nut.

The Mega-Coupler has solid nut tabs that won’t break off. Mega-Coupler uses standard half inch by 1-1/4 inch long hex head grade 8 bolts to secure your load. Bolt head locks into hex milled pocket so that you can tighten the nyloc nut while the clamp is installed. Has industry compatible 14 mm thick base. The Mega-Coupler fastens from (1-1/4" Pipe) 1.66" OD to 2 " OD truss tube.

The Light Source MLB Specifications:

  • Minimum Size: 1.25" pipe, 1.66" OD pipe
  • Maximum Size: 1.5" pipe, 1.90" OD pipe, 2" ODtruss tube
  • Safe Vertical Working Load: 1,100 lb 500kg
  • Standard hardware:
    • 1/2-13 × 1 1/4" Hex Head grade 8 zinc plated steel bolt with nylock nut
    • 1" Belleville Washer
  • Weight: 1.2 Pounds
