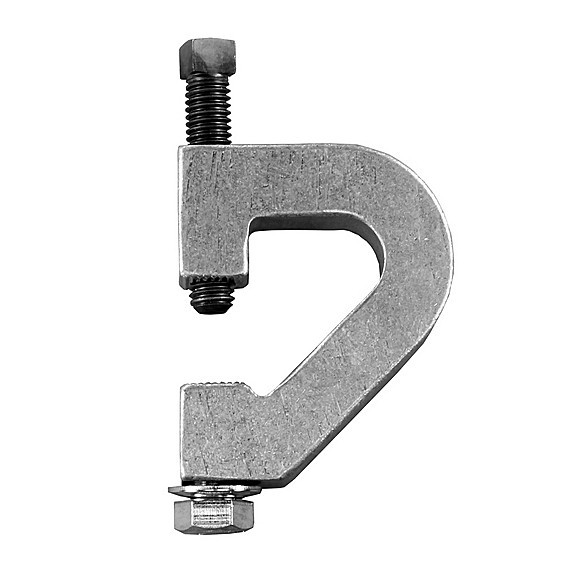

The Light Source PCM3/8
Purlin Clamp with 3/8" Fasteners in Aluminum

OUR PART #  PCM3/8

Our Price: $7.43
List Price: $12.00
You save 38%! (Low Price Guarantee)
In Stock

The Purlin Clamp is perfect for installing to purlins, I-beams and bar joists up to 1" thick. 1/2? × 2.5? square head set screw for locking onto I-beam. 1/2? × 1? grade 5 Hex Head Bolt supplied to connect load or use for1/2" – 13 tpi threaded rod. Micro-grooves for secure connection to beam. 1" thick.

The Purlin Clamp is also available with a 3/8? × 2.5? square head set screw. The # PCM3/8.

The Light Source PCM3/8 Specifications:

  • Safe Vertical Working Load: 500 lbs.for 1/2" and300 lbs for 3/8"
  • Hardware:
    • 1/2 × 2-1/2" Square Head Set Screw or
    • 3/8 × 2-1/2" Square Head Set Screw
    • .5 × 1? Hex Head Cap Screw
    • 1" Belleville Washer
  • Dimensions: 3 3/8" × 3 7/8"
  • Weight: 0.40 lb.

The Light Source PCM3/8
Purlin Clamp with 3/8" Fasteners in Aluminum

OUR PART #  PCM3/8

Product Information:

The Purlin Clamp is perfect for installing to purlins, I-beams and bar joists up to 1" thick. 1/2? × 2.5? square head set screw for locking onto I-beam. 1/2? × 1? grade 5 Hex Head Bolt supplied to connect load or use for1/2" – 13 tpi threaded rod. Micro-grooves for secure connection to beam. 1" thick.

The Purlin Clamp is also available with a 3/8? × 2.5? square head set screw. The # PCM3/8.

The Light Source PCM3/8 Specifications:

  • Safe Vertical Working Load: 500 lbs.for 1/2" and300 lbs for 3/8"
  • Hardware:
    • 1/2 × 2-1/2" Square Head Set Screw or
    • 3/8 × 2-1/2" Square Head Set Screw
    • .5 × 1? Hex Head Cap Screw
    • 1" Belleville Washer
  • Dimensions: 3 3/8" × 3 7/8"
  • Weight: 0.40 lb.
