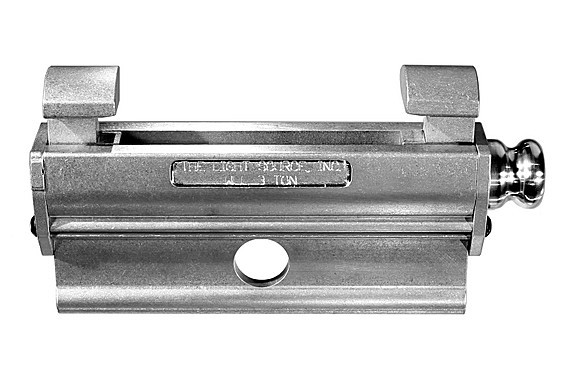

The Light Source MBC3T-8M
8" 3-Ton Mega Beam Clamp in Aluminum

OUR PART #  MBC3T-8M

Our Price: $162.00
List Price: $275.00
You save 41%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Mega-Beam Clamp is a low profile sliding jaw design that allows you to secure your load as close to the I-Beam as possible. The 8" model has a 3 ton rating. The two aircraft aluminum jaws are adjusted on the 3/4"-6 tpi Acme threaded shaft. The spring loaded handle locks after adjustment. Aluminum construction is half the weight of steel units and has a wider gripping range.

Fastens from 2" to 8" wide I-beam flanges up to 1" thick. Center hole is 1-1/2".

The Light Source MBC3T-8B Specifications:

  • Safe Vertical Working Load: 6,000 lbs. (2720 kg)
  • Dimensions (LxHxW):
    • 14.5" x 7.5" x 2.75"
    • Actual center hole is – 1 1/2"
  • Weight: 10.25 lbs

The Light Source MBC3T-8M
8" 3-Ton Mega Beam Clamp in Aluminum

OUR PART #  MBC3T-8M

Product Information:

The Mega-Beam Clamp is a low profile sliding jaw design that allows you to secure your load as close to the I-Beam as possible. The 8" model has a 3 ton rating. The two aircraft aluminum jaws are adjusted on the 3/4"-6 tpi Acme threaded shaft. The spring loaded handle locks after adjustment. Aluminum construction is half the weight of steel units and has a wider gripping range.

Fastens from 2" to 8" wide I-beam flanges up to 1" thick. Center hole is 1-1/2".

The Light Source MBC3T-8B Specifications:

  • Safe Vertical Working Load: 6,000 lbs. (2720 kg)
  • Dimensions (LxHxW):
    • 14.5" x 7.5" x 2.75"
    • Actual center hole is – 1 1/2"
  • Weight: 10.25 lbs
