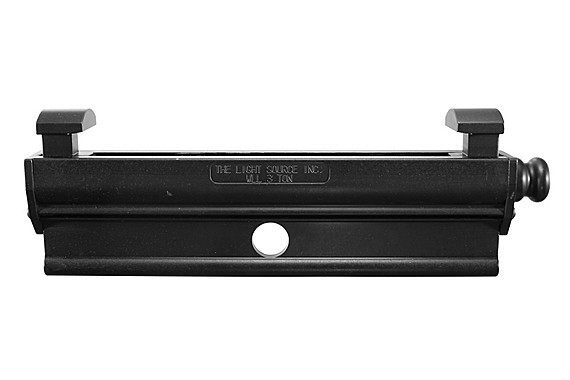

The Light Source MBC3T-16B
16" 3-Ton Mega Beam Clamp in Black

OUR PART #:  MBC3T-16B

The Mega-Beam Clamp is a low profile sliding jaw design that allows you to secure your load as close to the I-Beam as possible. The 16" model has a 3 ton rating.
Learn More
Our Price: $263.59
List Price: $355.00
You save 26%!
Write the first review.
The Light Source MBC3T-16B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Mega-Beam Clamp is a low profile sliding jaw design that allows you to secure your load as close to the I-Beam as possible. The 16" model has a 3 ton rating. The two aircraft aluminum jaws are adjusted on the 3/4"-6" tip Acme threaded shaft. The spring loaded handle locks after adjustment. Aluminum construction is half the weight of steel units and has a wider gripping range.

Fastens from 2" to 16" wide I-Beam flanges up to 1" thick. Center hole is 1-1/2".

The Light Source MBC3T-16B Specifications:

  • Safe Vertical Working Load: 6000 lbs (2720kg)
  • Diminsions (LxHxW):
    • 22.5" x 7.5" x 2.75"
    • Center Hole – 1 1/2"
  • Weight: 15.20
