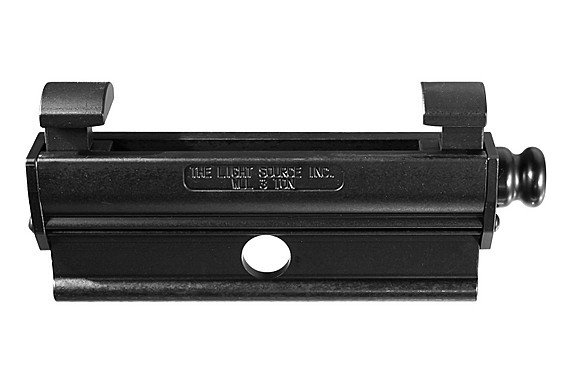

The Light Source MBC3T-10B 10" Mega-Beam Clamp, 3 Ton, Black

The Mega-Beam Clamp is a low profile sliding jaw design that allows you to secure your load as close to the I-Beam as possible. The 10" model has a 3 ton rating. The two aircraft aluminum jaws are adjusted on the 3/4"-6" tip Acme threaded shaft. The spring loaded handle locks after adjustment. Aluminum construction is half the weight of steel units and has a wider gripping range.

Fastens from 2 inch to 10 inch wide I-Beam flanges up to 1" thick. Center hole is 1-1/2".

The Light Source MBC3T-10B Specifications:

• Safe Vertical Working Load: 6,000 Pounds (2720kg)
• Dimensions (LxHxW):
  • 16.5" x 7.5" x 2.75"
  • Center Hole – 1 1/2"
• Weight: 11.40 Pounds
