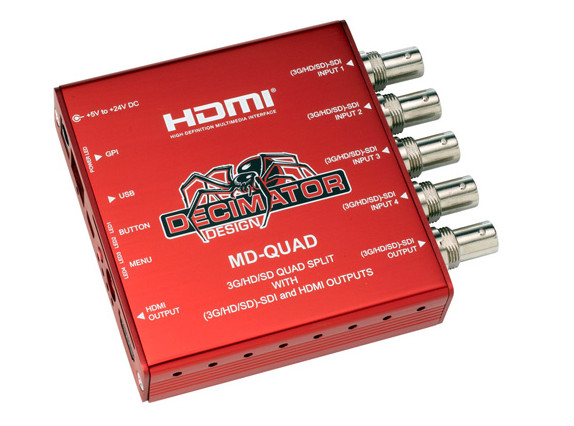

Decimator Design MD-QUAD
Decmiator Miniature 3G/HD/SD Quad Split with HDMI

OUR PART #:  DEC-MD-QUAD

Our Price: $1,295.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Decimator Design MD-QUAD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This low cost miniature (3G/HD/SD)-SDI 4 to 1 Quad Split Multiviewer or 4 to 1 input multiplexer offers selectable output format in Quad-Split mode as well as low latency buffering for each input allowing non-synchronous inputs.

TecNec DEC-MD-QUAD Includes:

  • MD-QUAD
  • Power Supply
  • HDMI Cable
  • USB Cable
  • Mounting Bracket

TecNec DEC-MD-QUAD Features:

  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • 8-Channel Audio metering for each quadrant with:
  • The first two audio groups individually selectable
  • Vertical or Horizontal Bars
  • AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
  • Bar & Float, Bar only or Float only (Float is not available for MQS serials)
  • Transparency adjustment
  • Separate Bar and Float Ballistics control
  • Adjustable Reference level
  • Red, Yellow and Green Range adjustment
  • Bar thickness adjustment
  • Margin adjustment
  • Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • Variable aspect ratios per quadrant
  • All 4 inputs can be displayed simultaneously on a single output
  • Pass-Through mode allowing any of the 4 inputs to be selected for output
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
  • On-Screen 20 character IDs (UMDs) for each input
  • A single tallies for each input is available from the GPI
  • An extensive selection of user controllable functions via an easy to use rotary encoder for menu selection. LEDs and a push button can then be used for status and control
  • USB port for control and updates
  • GPI on RJ-45 for remote switching
  • Locking DC Power Socket
  • In Quad-Split mode the first 8-channels of audio from any input can now be passed to both the HDMI and SDI output
  • On-screen audio id pop-up when selection audio source in Quad-Split mode
  • On-screen display pop-up when using the rotary to allow for use when without a PC
  • Professional 3G/HD/SD Test Pattern Generator featuring 54 Test Patterns including Luma and Chroma Zone-plates
  • Audio Tone Generator
