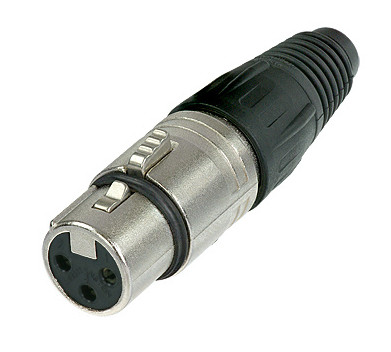

Neutrik NC3FX-1
3-Pin Female XLR Connector in Nickel

OUR PART #:  NC3FX-1

3 pole female cable connector with Nickel housing and silver contacts. The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws.
Learn More
Our Price: $2.89
List Price: $4.00
Save up to 39% when you order by quantity!
  • Buy 25: $2.61 each.
  • Buy 50: $2.52 each.
  • Buy 100: $2.43 each.
Write the first review.
Related Products

3 pole female cable connector with Nickel housing and silver contacts.

The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

Neutrik NC3FX-1 Features:

  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
  • Coloured rings and boots available for coding and marking
  • UL recognized components

Specifications:

  • Title: NC3FX
  • Connection Type: XLR
  • Gender: female
  • Electrical:
    • Capacitance between contacts: = 4 pF
    • Contact resistance: = 3 mO (inner)
    • Dielectric strength: 1,5 kVdc
    • Insulation resistance: > 10 GO (initial)
    • Rated current per contact: 16 A
    • Rated voltage: 50 V
  • Mechanical
    • Cable O.D.: 3.5 - 8.0 mm
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize max.: 2.5 mm²
    • Wiresize max.: 14 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
  • Material
    • Boot: Polyurethane
    • Contact plating: 2 µm Ag over 2 µm Ni
    • Contacts: Bronze (CuSn8)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: St3K32 (latch) / Ck 67 (spring)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
    • Strain relief: Polyacetal (POM)
  • Environmental
    • Approvals: UL
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
