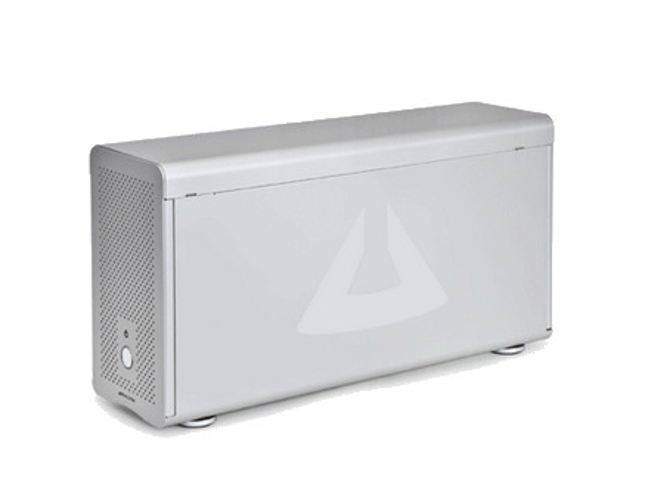

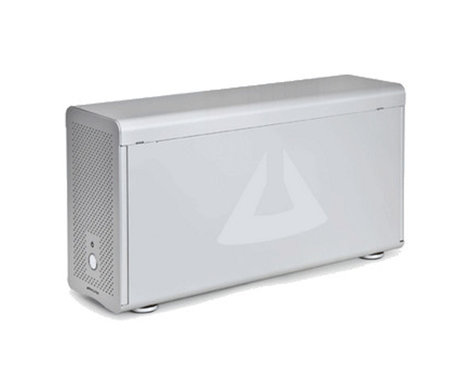

Magma ExpressBox 3T
3-Slot Thunderbolt to PCIe Expansion Chassis

OUR PART #:  MG-EB3T-DB

Attach (3) full-length PCIe cards to your Thunderbolt equipped computer.
Learn More
Our Price: $1,099.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Magma ExpressBox 3T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Attach (3) full-length PCIe cards to your Thunderbolt equipped computer.

ExpressBox 3T provides an 'outside-the-box' solution for using PCIe cards with Thunderbolt-equipped computers. High-performance work flows are possible by connecting a Thunderbolt equipped computer to a Thunderbolt expansion chassis containing PCIe cards such as video capture, media transcoding, audio processing, and fast data storage. And because Thunderbolt is also based on DisplayPort technology, you can daisy chain a high-resolution display with your Magma ExpressBox 3T.

Magma MG-EB3T-DB Features:

  • Supports (3) full-length PCI Express cards ExpressBox3T
  • Use a variety x1, x4, x8 and x16 PCIe cards
  • Two x8 and One x4 (one of the x8 slots accommodates ax16 Card)
  • Thunderbolt features speeds up to 10Gbps
  • Daisy-chain up to 6 Thunderbolt devices
  • 250W power supply with (2) auxiliary power connectors
  • Protect your investment in PCIe hardware while migrating to Thunderbolt-equipped computers!
  • Benefits:
    • Attach PCIe cards to Thunderbolt enabled computer
    • Extension of PCI Express signals outside the computer
    • Daisy-chain or end-point device
    • Easy Plug and Play installation
    • Use any combination of x1, x4, x8 and x16 PCIe cards
    • Hot-swappable cooling fan
    • Works with Mac OS X 10.6.8 or higher
    • Additional blower for extra hot cards
    • Optional built in drivebay for up to four (4) 2.5" SSD or SAS/SATAdrives

Magma MG-EB3T-DB Specifications:

  • Model: EB3T Thunderbolt to PCIe Expansion - 3 Slot
  • Hardware:
  • Backplane: (3) Full Length PCI Express Slots*
    • two x8 PCIe 2.0
    • one x4 PCIe 2.0
    • One slot accommodates x16
  • Cable Required: Thunderbolt (Sold Separately)
  • Interconnect Bandwidth: 10 Gbps Bi-directional
  • Hard Drive Support: Optional built in drivebay for up to four (4) 2.5" SSD or SAS/SATA drives*
  • Enclosure:
    • Material:  Aluminum Chassis
    • Dimensions (LxWxH): 14.6” x 4.3” x 7.9” (371mm x 110mm x 200mm)
    • System Cooling
    • (1) Hot Swappable Fan  (1) Removable Blower Fan
  • Power Supply: 250W, 100-240 VAC, 50-60HZ Two 4-pin auxiliary power tabs
  • Environmental:
    • Ambient Temperature: 0º to 50º C
    • Storage Temperature: -20º to 60º C
    • Relative Humidity: 5% to 85% non-condensing
  • Regulatory Compliance:
    • FCC Class A Verified
    • RoHS Compliant
  • Supported Operating Systems: Mac OS X 10.6.8 orhigher
  • Warranty: 30 day money back guarantee  1year return to factory
  • Partner Approvals
    • Avid
    • Universal Audio
    • Lynx Studio
    • Apogee
