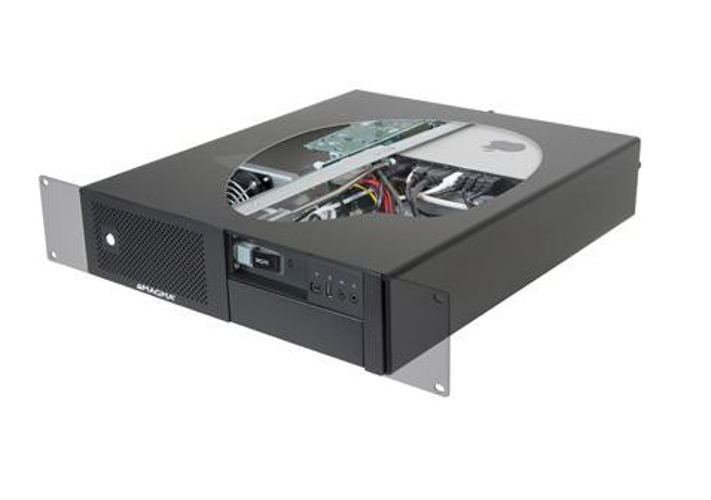

Magma MG-ROBEN-3TM-R
3-Slot Thunderbolt to PCIe Rackmount Expansion Chassis

OUR PART #:  MG-ROBEN-3TM-R

The ROBEN-3TM takes expansion computing to an exciting new dimension.
Learn More
Our Price: $1,804.05
List Price: $1,899.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Magma MG-ROBEN-3TM-R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ROBEN-3TM takes expansion computing to an exciting new dimension. Featuring three (3) full-length, full-height PCIe slots, the ROBEN-3TM offers you the unique ability to embed an Apple Mac mini directly into the system chassis. This incredible feature gives you the most dynamic 3-slot Thunderbolt expansion capacity known to mankind.

You have a lot invested in your creative assets, so the ROBEN-3TM allows you to keep your valuable plug-ins secure with an optional front panel USB iLok.

The rack-mountable aluminum chassis was designed with a 540-watt power supply, auxiliary power, and features Magma’s exclusive Quiet Temperature Controlled (QTC) cooling. The ROBEN-3TM is precision engineered as the ideal sidekick to the Apple Mac mini.

We understand that your projects require an exceptional, high-performance workstation, so the ROBEN-3TM was designed for ‘mission critical’ capabilities previously reserved for our defense and aerospace customers. Failure is not an option, so we integrated the best of Magma’s advanced technologies and sourced the highest quality components for this superlative chassis.

It’s time to create. Simply add a host of specialty PCIe cards to an Apple Mac mini and unleash your creative genius. ROBEN-3TM’s patented performance optimizing backplane flawlessly integrates PCIe expansion, storage, and Thunderbolt connectivity, ensuring that each system device operates at maximum performance and speed.

With the option of embedding an Apple Mac mini, the new iLok feature and 3-slot capacity, the ROBEN-3TM is the gold standard for high-end Thunderbolt-based computing.

Magma MG-ROBEN-3TM-D Features:

  • Three (3) available full length/full height expansion slots
  • Tool-less cover removal
  • White power-on indicator front panel light
  • One 80mm 33.4 CFM Expansion Card/Backplane Fan
  • Variable speed thermistor control option (or fullspeed)
  • Thunderbolt speeds up to 10Gbps (1.25GBps) Bi-directional
  • Attach PCIe cards to Thunderbolt enabled computer
  • Extension of PCI Express signals outside the computer
  • Daisy-chain or end-point device
  • Embeddable Mac mini
  • Lockable iLok secure location using one ofthe front panel USB ports (lock sold separately)
  • Single power cord for expansion slots and Macmini (Thunderbolt cable included)
  • Easy Plug and Play installation
  • Use any combination of x1, x4, x8 and x16 PCIe cards
  • QTC cooling
  • Auxilary power cables
  • 540-watt power supply

Magma MG-ROBEN-3TM-D Specifications:

  • Model: ROBEN-3TM  Thunderbolt to PCIe Expansion- 3 Slot with Embeddable Mac Mini
  • Backplane:
    • (3) Full Length/Full Height PCI Express Slots
    • 3 slots x8 PCIe 2.0 electrical; x16 mechanical
  • Cable Required:  Thunderbolt (Included)
  • Interconnect Bandwidth: 10 Gbps Bi-directional
  • Enclosure:
    • Material: Aluminum Chassis
    • Dimensions (LxWxH):  17” x 14.25” x 3.48” (432mm x 363mm x 88.4mm)
  • System Cooling:
    • (1) 80mm 33.4 CFM Expansion Card/Backplane Fan
    • (1) Variable speed thermistor control option (or full speed)
  • Power Supply:
    • 540W Standard, 100-240 VAC, 50-60HZ  Auxiliary power cables:
    • (4) 4-pin Molex connectors
    • (2) 6-pin + 2 PCIe connectors
    • (2) PCIe Connectors
  • Environmental:
    • Ambient Temperature: 0º to 50º C
    • Storage Temperature: -40º to 125º C
    • Relative Humidity: 10% to 90% non-condensing
  • Regulatory Compliance:
    • FCC Class A Verified
    • RoHS Compliant
    • CE Certified
  • Supported Operating System: Mac OS X 10.6.8 or higher
  • Warranty: 30 day money back guarantee 1year return to factory
  • Partner Approvals:
    • Avid
    • Universal Audio
    • Lynx Studio
    • Apogee
