Community R.35COAXB
10" 2-Way Coaxial R Series Speaker in Black


The Community R.35COAXB is a two-way...
Learn More
Our Price: $570.00
Write the first review.
Community R.35COAXB
In Stock

Related Products

The Community R.35COAXB is a two-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers. The R.35COAX has a 1.25-inch (32mm) exit HF compression driver and a 10-inch (254mm) cone LF driver with a 2-inch voice coil. The HF assembly is coaxially mounted with the LF driver allowing 90° conical coverage with low distortion. The carbon ring cone design provides a cone area nearly equivalent to a typical 12-inch driver cone.

The Music / Voice switch provides an out-of-the-box selectable flat response or 3dB boost for increased vocal intelligibilty allowing for additional application flexibility. The design uses Community's proprietary Tru-Phase™ phase plug to provide wide dispersion, low distortion and increased intelligibility. The LF driver cone is treated with the same NeverWet™ protection as the grille cloth to provide full weather-resistance. Enclosure has a reinforced ribbed interior with weather-treated wooden inserts to reduce resonance, increase rigidity and reduce rear and lateral radiation.

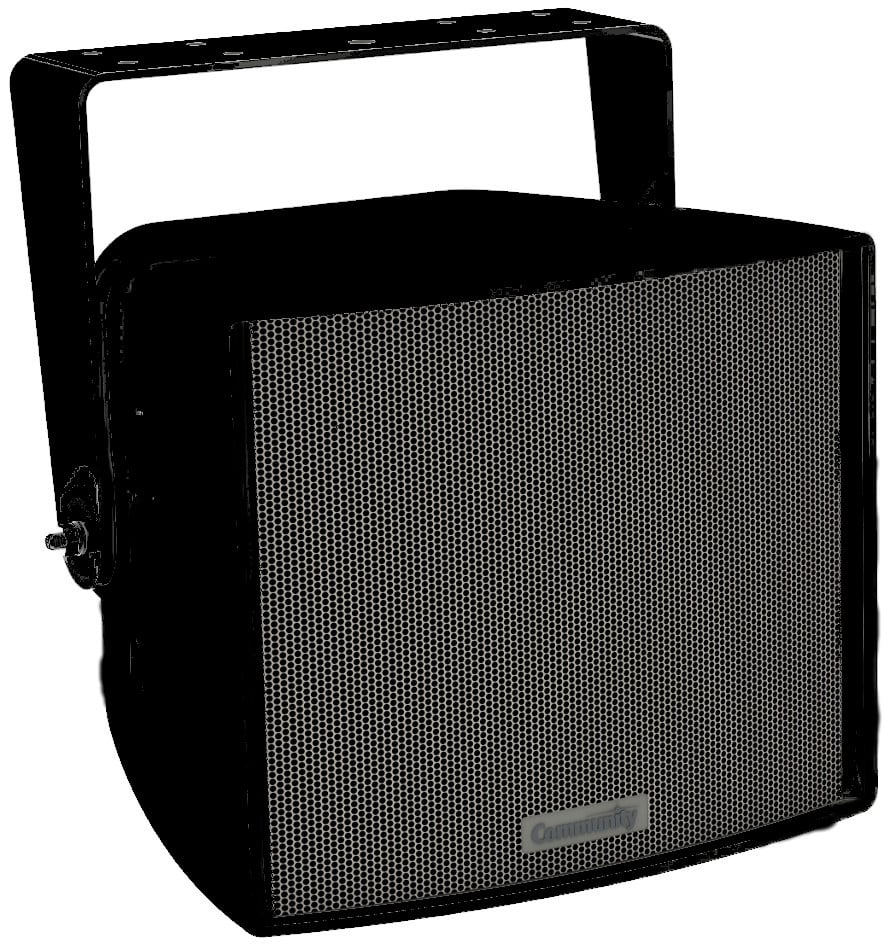

NOTE: Appearance of speaker in picture above may not exactly resemble that of the actual product.  Picture is used above for approximate illustrative purposes.

Community R.35COAXB Features:

  • Excellent musicality and intelligibility, low distortion, and high sensitivity and output
  • Weather-resistant, compact, matte finish paintable high impact ABS plastic modified-trapezoidal enclosure
  • NeverWet™ treated grille and LF driver cones, polymer HF diaphragm, and moisture-sealed crossover
  • Corrosion-resistant zinc-rich epoxy dual-layer powder-coated steel grille and low-profile yoke
  • Real compression driver on Tru-Phase™ waveguide
  • 200W Autoformer (standard)
  • Structurally rigid with weather sealed wood inserts to reduce resonance and rear radiation
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R.35COAXB Specifications:

  • System:
    • Loudspeaker Type: Full-range, two-way, coaxial, weather-resistant
    • Operating Range: 70 Hz to 16 kHz (-10 dB)
    • Frequency Response: 110 Hz to 12.5 kHz (-3 dB)
    • Max Input Ratings:
      • 200W RMS, 400W Program
      • 40 volts RMS, 80 volts momentary peak
    • Autoformer Taps:
      • 70V: 200W, 100W, 50W, 25W and low impedance
      • 100V: 200W, 100W, 50W
    • Maximum Output:
      • Music: 120 dB (126dB peak)
      • Speech: 122 dB (128dB peak)
    • Sensitivity (1W / 1m) Free Space SPL:
      • Music: 97 dB (125 Hz - 10 kHz), 97 dB (250 Hz - 4 kHz)
      • Speech: 99 dB (125 Hz - 10 kHz), 99 dB (250 Hz - 4 kHz)
    • Nominal Impedance:
      • Music: 8 ohms, 5.9 ohms @ 200 Hz minimum
      • Speech: 8 ohms, 5.5 ohms @ 5 kHz minimum
    • Nominal Beamwidth (-6dB): 90° x 90° , 1.6 kHz to 10 kHz
    • Axial Q / DI: 10/10, 1.6 kHz to 10 kHz
    • Crossover Frequency: 1.3 kHz
    • Recommended High Pass: 70 Hz 24 dB / Octave
    • Recommended Amplifier : 400W to 600W at 8 ohms
    • Coaxial Transducers:
      • Low Frequency: 1 x 10" Carbon ring NeverWet™* treated cone, 2" VC
      • High Frequency: 1 x 1.25" exit compression
  • Physical:
    • Input Connection: NL4 Speakon-type connector for low impedance operation only; and 7-position terminal strip for low impedance or constant voltage operation
    • Controls: Music / speech switch, 70V/100V operation jumper
    • Enclosure: ABS plastic, matte finish, paintable
    • RAL # 7038, 9004 or 9003
    • Mounting/Rigging Provisions: Two M8 rigging points, zinc-rich epoxy dual-layer powder-coated yoke, included integral safety cable mounting point
    • Grille: 3-layer Weather-Stop™ featuring NeverWet™ treated polyester mesh, foam, zinc-rich dual-layer powder-coated perforated steel color-matched to enclosure
    • Input Panel Weather Cover: Color-matched ABS plastic with 13.5mm ID gland nut installed in 0.82" knockout
    • Environmental: IP55W per IEC 529 at recommended 5° down-tilt, designed to MIL-STD-810G
    • Dimensions: 11" H x 13" W x 13.5" D (279 x 330 x 343 mm)
    • Loudspeaker Unit Weight: 26 lbs (11.8 kg) with included yoke
    • Shipping Weight: 32 lbs (14.5 kg)
