Midas DL152
24-Output Stagebox with Dual-Redundant AES50 Networking

OUR PART #:  DL152

The DL152 delivers legendary MIDAS sound quality in a cost effective, discrete 2U chassis that utilises time-tested and proven MIDAS technologies.
Learn More
Our Price: $999.99
Write the first review.
Midas DL152
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The DL152 delivers legendary MIDAS sound quality in a cost effective, discrete 2U chassis that utilises time-tested and proven MIDAS technologies. Equipped with 24 balanced line level outputs and dual redundant AES50 network ports, the DL152 is the ideal partner to the PRO1 and PRO2 digital consoles — significantly increasing the network capacity and number of analogue outputs.

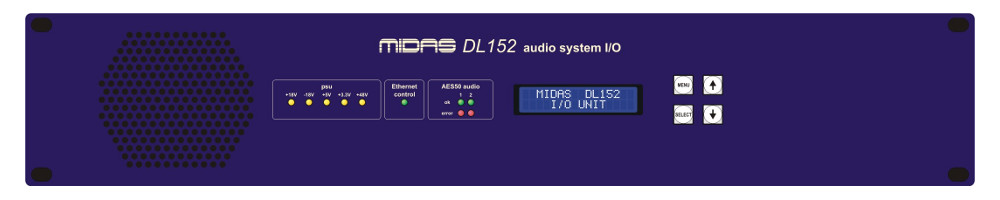

User interface controls and feedback is via an intuitively laid out front panel. The controls and LED indicators provide ease of use and instant feedback at a glance. All primary connections use high quality balanced XLR connectors.

Housed in a road-ready, rugged 19" 2U rack-mountable chassis, the DL152 is ideally suited for storage in standard flight cases (not included).

Integration Within The MIDAS Product Range
Styled to match our existing console aesthetic, MIDAS high performance I/O has never been easier to use — or more cost effective.

Midas DL152 Features:

  • 4 active-balanced low impedance line-level outputs
  • Selectable 96 kHz or 48 kHz sample rate operation
  • Dual AES50 Neutrik etherCON network ports with LED status indicators
  • All settings programmable from front panel controls or console
  • Remote operation up to 100 m via CAT5 cable
  • PSU status indicator LEDs and configuration LCD display on front panel
  • Rugged 2U rackmount chassis for durability in portable applications
  • Auto-ranging universal switch-mode power supply

Midas DL151 Specifications:

  • External Connections
    • Primary Analogue Inputs Mic / Line inputs: balanced XLR connectors - 50 kOhm source
    • AES50 Connections: Neutrik etherCON with status indication
    • Diagnostic Connection: 9 W female ‘D’-type connector
    • Power Connections IEC mains inlet: 100 - 240 VAC~50 - 60 Hz ±10%
  • Audio Electronic Specifications
    • Maximum Output Level
      • Line outputs (into 600R): +21dBu
    • Frequency Response: (20 Hz - 20 kHz) relative to 1 kHz: ±0.5 dB
    • Distortion at 1 kHz: Input to output (0 dB) < 0.01%
    • Crosstalk at 1 kHz: Channel to channel < -90 dB
    • Dynamic Range at 1 kHz: 22 Hz - 22 kHz (at unity gain) > 108 dB unweighted (20 Hz - 20 kHz)
  • Power Requirements
    • Voltage: 100 V AC to 240 V AC ±10%
    • Frequency: 50 Hz to 60 Hz
    • Consumption: <150 W
  • Physical
    • Dimensions: 3.5"(H) x 19.0"(W) x 15.0"(D)
    • Net Weight: 11 lbs
