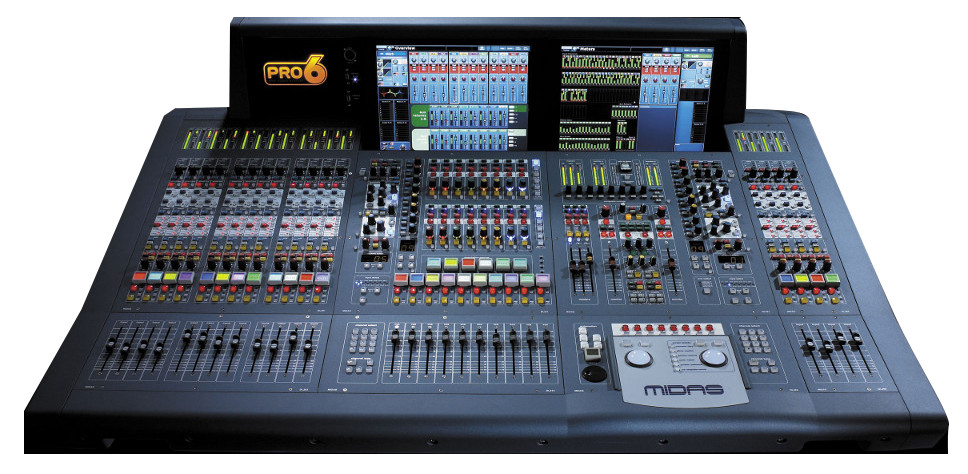

Midas PRO6 TP
56 Input Live Audio Mxing System - Touring Package

OUR PART #:  PRO6/CC/TP

The Midas PRO6 Control Centre ( surface only ) digital audio mixing system, capable of 56 mic/line inputs + 8 aux/line inputs x 35 buss/outputs...
Learn More
Similar Products

The Midas PRO6 Control Centre (surface only) digital audio mixing system, capable of 56 mic/line inputs + 8 aux/line inputs x 35 buss/outputs, (in custom touring flight case).

NOTES:  - No cards or blank panels are included with this system. Please contact your Sales Representative for more information.

- The DL371PRO6-01 modular DSP engine is NOT INCLUDED and is REQUIRED in order to operate this console.  Please see the product page above or contact your sales representative for more information.

PRO6 comprises a control surface (console), a DL371 modular, upgradeable, remote processing engine, and a networked system of I/O devices (up to 11 discrete devices) all connected by inexpensive CAT 5e cabling. Each PRO6 Touring Package ships complete with a MIDAS DL351 modular stage box, featuring 56 MIDAS mic inputs and 8 analogue XLR outputs in its default configuration. PRO6 is also compatible with any of the MIDAS DL series digital I/O units. In addition to this, the PRO9 console has three card slots on its rear panel which can house any combination of MIDAS DL series I/O cards. The default configuration is 8 line inputs and 8 analogue outputs with TRS connectors, 8 XLR analogue outputs, 8 digital inputs and 8 digital outputs on 4 AES3 input/output pairs. This can be quickly reconfigured with whatever I/O is required. Redundant power supplies are included with every system as part of the PRO6’s failure-tolerant architecture.

PRO6 is easy to configure and operate. Engineers who are new to MIDAS digital can relax, enjoy the PRO6’s sample-synchronous audio quality, and mix from well within their comfort zone. Engineers already familiar with MIDAS can just load their existing show file straight into the PRO6, regardless of which MIDAS digital console it was created on, and carry on working.

In addition to the PRO6’s 56 primary input channels, PRO6 also features 8 aux returns, all of which feature 4-band MIDAS parametric EQ and insert points. These 8 aux returns can be used as returns for the PRO6’s 8 internal multichannel FX processors, or as additional mic input channels.

A total of 64 input channels have routing to 35 phase-coherent mix buses, which comprise 16 user-configurable buses (which can be mixes, subgroups or mix minus groups), and 16 matrix buses. The Matrix buses source from inputs, as well as groups, and so can be used as 16 additional auxes (monitor mix and FX sends) which provides a total of 32 mixes (plus L, R & Mono) for monitor mixing duties. All buses can be linked as stereo pairs (except the mono bus).

As with all MIDAS digital consoles, the audio paths can be routed to multiple destinations and the console format can be reconfigured live on a scene-by-scene basis.

By fitting additional DSP modules and I/O, PRO6 can be upgraded to full PRO9 configuration, which features 88 input channels, 8 multichannel FX processors and 35 mix buses.

Midas PRO6 Features:

  • 11 x 96 kHz AES50 ports providing a maximum of 288 inputs and 294 outputs
  • Up to 24 user-configurable inputs and outputs on the console
  • 64 simultaneous input processing channels
  • 35 sample-synchronous, phase-coherent mix buses
  • Up to 16 multichannel FX engines
  • Up to 36 KLARK TEKNIK DN370 31-band Graphic EQs
  • Dual full-colour 15" daylight-viewable display screens
  • Touch-sensing, fully interpolated controls throughout
  • 10 VCA (Variable Control Association) groups
  • 6 POPulation groups
  • 96 kHz 40-bit floating-point processing throughout
  • Remote, modular processing engine
  • Modular, user-configurable I/O
  • Dual-redundant control computers
  • Dual-redundant CAT 5e network connections
  • Redundant power supplies on both console and processing engine

Midas PRO3 Specifications:

  • Sampling frequency: 96kHz
  • Latency delay: <2ms input to master (no compensation)
  • Dynamic range: 110dB, 22Hz to 22kHz (no pre-emphasis)
  • Maximum voltage gain:
    • 80dB inputs to subgroups and masters
    • 86dB inputs to aux and matrix
  • Crosstalk at 1kHz: -100dB physically adjacent input channels
  • Crosstalk at 10kHz: -100dB physically adjacent input channels
  • Fader/pan cut off at 1kHz: -100dB
  • Fader/pan cut off at 10kHz: -100dB
  • Display screens: 2 x 15" daylight-viewable color screens
  • LCD switch: 33 x RGB colour
  • Motorised faders: 29 x touch-sensitive
  • Fader resolution: 1024 steps
  • Encoders: 102 x touch-sensitive
  • Encoder resolution: 512 steps
  • Dimensions: 51.18" x 39.37" x 15.75"
    • DL351 I/O Box: 7U x 410 mm deep
    • DL371 DSP: 7U x 410 mm deep
  • Weight Control centre: Approx. 265 lbs
