Lowell LH-15TA Paging Horn with Universal Swivel Mount Bracket, 15W, 70V/25V, Beige

OUR PART #: LH-15TA

Copied to clipboard

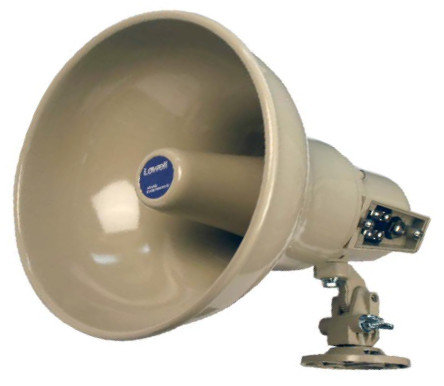

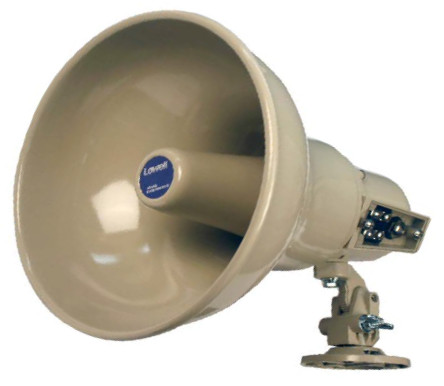

Lowell LH-15TA Paging Horn With Universal Swivel Mount Bracket, 15W, 70V/25V, Beige Image 1
Lowell LH-15TA Paging Horn With Universal Swivel Mount Bracket, 15W, 70V/25V, Beige
Our Price: $184.91
List Price: $210.12
You save 12%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$6/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Lowell LH15TA is a double re-entrant metal horn with a high efficiency 15W compression driver to achieve clear and understandable voice paging and tone signaling in indoor or outdoor applications. The all-purpose horn is ideal for use where a weather-resistant speaker is specified for public address and signaling applications that require high intelligibility such as schools, recreational facilities, warehouses, distribution centers, parking facilities, and commercial buildings of all kinds. Model LH-15T operates within a frequency range of 400Hz-12kHz (nominal), 650Hz-4.6kHz (+6dB) with a sensitivity of 117.8dB SPL (max) 15W/1M calculation based on power rating and measured sensitivity, 109dB SPL (avg) 1W/1M to provide clear voice communication.

The horn includes a high quality transformer for versatile use in 25V, 70V or 100V distributed applications. Transformer taps are selected with a screwdriver. Transformer tap selector and screw terminal connections are located on the rear of the horn in a recessed area with integral strain relief and protective plastic cover. The horn mounts using a universal, swivel-style bracket for efficient and versatile installation and positioning of the projector. The mounting bracket base measures 2.875" dia. with three equally spaced holes (.28" dia.). The horn assembly measures 8.625" dia. x 9"H x 9.125"L. It is metal and plastic construction with a durable grey epoxy finish for long service life. The horn assembly weighs 3.6 lbs. and ships ready for installation.

Lowell LH15TA Features:

  • Clear and loud paging, music and tone signaling.
  • Versatile application in 25V, 70V or 100V systems with built-in transformer (screwdriver adjustable).
  • Weather-resistant assembly suitable for indoor or outdoor use.
  • Universal swivel mounting bracket for easy installation and precise adjustment of orientation.
  • Easy 2-wire hook-up to rear access screw terminals.

Lowell LH15TA Specifications:

  • Size: 9" H x 9.125" L (8.625" diagonal)
  • Weight: 3.6 lbs
