Midas DL371 PRO3
Modular DSP Engine for PRO3 Console

OUR PART #:  DL371PRO3-01

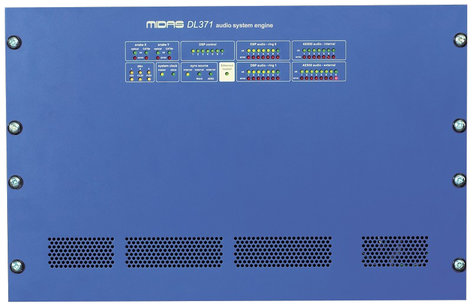

The Midas DL371 PRO3 processing engine is a 7U 19” rack mount unit, which houses up to 7 audio processing modules employing advanced FPGA architecture plus routing hardware.
Learn More

Call for price! Not available online.
List Price: $10,499.99

Similar Products

The Midas DL371 PRO3 processing engine is a 7U 19” rack mount unit, which houses up to 7 audio processing modules employing advanced FPGA architecture plus routing hardware.

The DL371 processing engine is loaded with 4 modules in the standard configuration, with an extra-cost option for an n+1 redundant spare module. Due to the module design of the engine there is option of an upgrade path. By adding an additional DSP card to an existing PRO3 it can be upgraded to a PRO6 and the PRO6 to a PRO9. By adding 2 cards the PRO3 can be upped to a PRO9.

The DL371 contains three removable power supplies, only two of which are required for full operation. These power supplies are auto-voltage sensing, auto-switchover, hot-swappable and are fitted with locking AC connectors and are identical to, and therefore interchangeable with, the PSUs in the Control Centers.

The engine has dual-redundant HyperMac ports (both CAT5e and Optical), which provides the digital equivalent of a 384-way (192 in + 192 out) multi-core between the stage and FOH. There are also eight AES50 ports, which facilitate connections to the DL451, DL351 and DL251 stage boxes, and/or other AES50 I/O hardware. It is also possible to use a PRO3 with a DL431, the Klark Teknik DN9696 Hi-Resolution Audio Recorder and DN9650 Network Bridge.

Midas DL371 PRO3 Features:

  • N+1 PSU Redundancy Option Available
  • Dual redundant HyperMAC ports
  • Eight AES50 ports
  • Ethernet tunnel connection
  • Word Clock and AES3 sync connections
  • Advanced FPGA architecture
  • Upgrade options for upgrading a PRO3 to a PRO6 or PRO9
  • 7 RU Size
