64-Channel Control Centre Surface Digital Audio Mixing - Touring Package

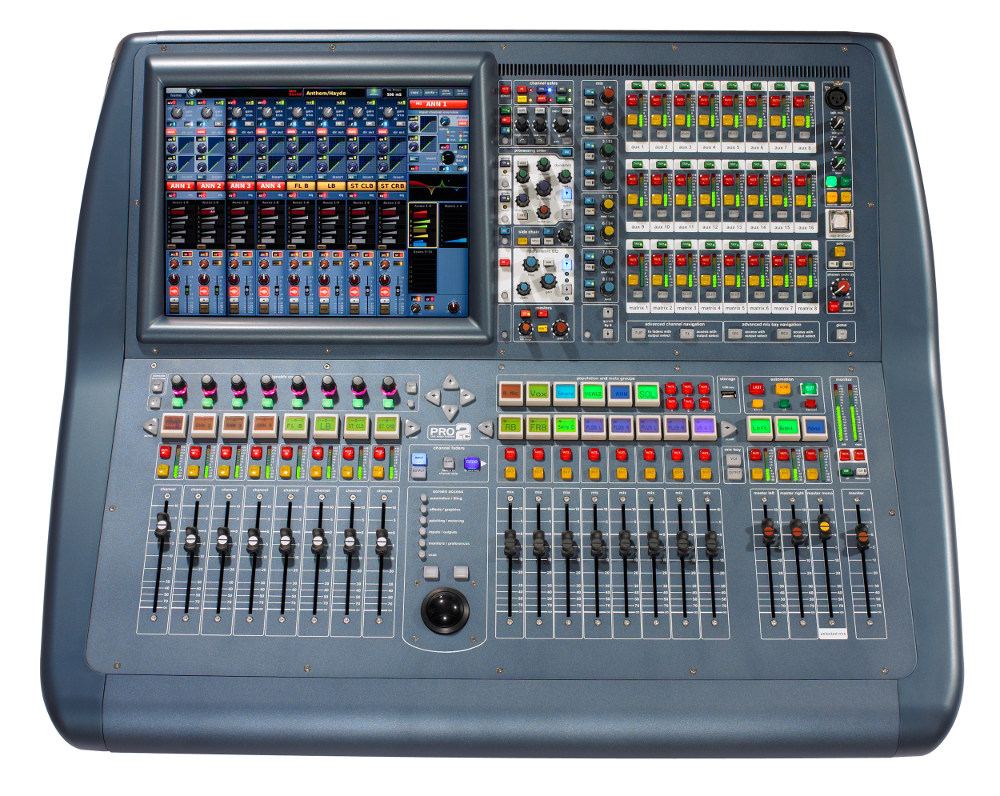

The PRO2C is a 64-Channel x 27 bus digital audio mixing system.
Learn More

Call for price! Not available online.
List Price: $14,499.99

Related Products

The PRO2C is a 64-Channel x 27 bus digital audio mixing system. Includes PRO2 Compact console (flight cased ) loaded with 8 mic/line inputs, 16 analogue outputs 2 AES3 inputs and 3 AES3 outputs.

NOTE: The ACBLX-2303 Cat5e cable reel and DL251 Stage Box are NOT INCLUDED and are REQUIRED in order to operate this console.  Please see the product page above or contact your sales representative for more information.

The PRO2C is designed to work in conjunction with any of the MIDAS digital I/O units.

PRO2C is easy to configure and operate and is identical to the PRO2 apart from having 8 fewer input faders. Engineers who are new to MIDAS digital can relax, enjoy the PRO2C’s sample-synchronous audio quality, and mix from well within their comfort zone. Engineers already familiar with MIDAS can just load their existing show file straight into the PRO2C, regardless of which MIDAS digital console it was created on, and carry on working.

In addition to the PRO2C’s 56 primary input channels, PRO2C also features 8 aux returns, all of which feature 4-band MIDAS parametric EQ and insert points. These 8 aux returns can be used as returns for the PRO2C’s internal FX processors, or as additional mic channels, if sufficient mic inputs are available on the I/O hardware.

A total of 64 input channels have routing to 27 phase-coherent mix buses, which comprise 16 user-configurable buses (which can be mixes, subgroups or mix minus groups), and 8 matrix buses. The matrix buses source from inputs, as well as groups, and so can be used as 8 additional auxes (monitor mix and FX sends) which provides a total of 24 mixes (plus L, R & Mono) for monitor mixing duties. All buses can be linked as stereo pairs (except the mono bus).

As with all MIDAS digital consoles, the audio paths can be routed to multiple destinations and the console format can be reconfigured live on a scene-by-scene basis.

Midas PRO2C/CC Features:

  • 6 x 96 kHz AES50 ports, providing an additional 156 inputs and 166 outputs
  • 8 integral mic/line inputs with MIDAS mic preamps
  • 64 simultaneous input processing channels
  • 32 analogue outputs (including 16 on the stage box and 2 stereo local monitor outputs)
  • 3 AES3 outputs
  • 2 AES3 inputs
  • 27 sample-synchronous, phase-coherent mix buses
  • Up to 12 multichannel FX engines
  • Up to 28 KLARK TEKNIK DN370 31-band Graphic EQs
  • Full-colour 15" daylight-viewable display screen
  • 8 VCA (Variable Control Association) groups
  • 6 POPulation groups
  • 96 kHz 40-bit floating-point processing throughout

Midas PRO2C/CC Specifications:

  • Sampling frequency: 96kHz
  • Latency delay: <2ms input to master (no compensation)
  • Dynamic range: 106dB, 22Hz to 22kHz (no pre-emphasis)
  • Maximum voltage gain:
  • 80dB inputs to subgroups and masters
  • 86dB inputs to aux and matrix
  • Crosstalk at 1kHz: -100dB physically adjacent input channels
  • Crosstalk at 10kHz: -90dB physically adjacent input channels
  • Fader/pan cut off at 1kHz: -100dB
  • Fader/pan cut off at 10kHz: -100dB
  • Display screens: 1 x 15” daylight-viewable colour screen
  • LCD switch: 25 x RGB colour
  • Motorised faders: 20 x touch-sensitive
  • Fader resolution: 1024 steps
  • Encoders: 31 x touch-sensitive
  • Encoder resolution: 512 steps
  • Dimensions: 34.72" W x 27.75" D
  • Power requirements: 100V to 240V a.c. ±10%, 50 to 60Hz
  • Operating temperature range: +5°C to +45°C
  • Storage temperature range: -20°C to +60°C
