Product Overview

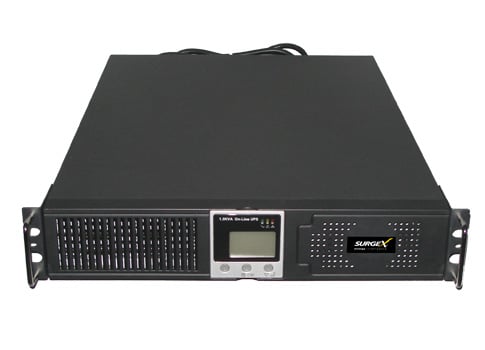

SurgeX's UPS-1000-OL delivers online, double conversion technology in a multi form factor which allows the UPS to fit into any network application. Extended runtimes of up to 18 hours via the extended battery packs means that you can increase the runtime as much as desired.
The UPS-1000-OL is the perfect choice for critical audio video systems, business servers, point of sale equipment, telephony, and data networks.
SurgeX UPS-1000-OL Includes:
- UPS-1000-OL
- UPSILON CD
- Horizontal brackets
- 5:1 brackets
- Manual
- 6 ft DB9 cable
SurgeX UPS-1000-OL Features:
- On-line Technology - Ensures compatibility with all connected equipment
- Enterprise Grade LCD - More monitoring & precise information from the front
- Almost Infinite Scalable Runtimes - As much as 18 hours of holdover, each battery pack has its own charger
- Multi Form Factor - Tower/Rack-mounting and Wall-mounting saves space
- Multiple Communications Capability - RS232 & SNMP
- Emergency Power Off Switch (EPO) - Compliance with the highest application safety standards
- Fast Battery Recharge - Typically less than 4 hours to recharge an endless supply
- Low Noise and Less Power Consumption - "Smart Fan" speed control
- Replaceable Battery Trays - Just slide the battery tray out and slide the new one in
SurgeX UPS-1000-OL Specifications:
- Input:
- Voltage: 120 VAC (80 - 138 V at 100% load) 60-138 V at 40% load
- Capacity VA (W): 1000 VA (700 W)
- Frequency: 50/60 Hz auto sensing
- Power Factor: = 0.97
- Topology: True on-line, Double conversion, Input PF correction
- Output:
- Voltage: 120 VAC
- Frequency: 50/60 Hz auto sensing
- Wave Form: Sine wave, zero transfer time
- Load Power Factor: 0.7
- Efficiency AC/DC/AC: = 90%
- Auto Restart: Yes
- Start on Battery: Yes
- Rated Current: 8.3 A
- Overload Capacity: 110-150% for 30 sec, = 150% for 200 msec
- Crest Factor: 3:1 at full load
- Battery:
- Battery Type (UPS): (3) 12V 9AH/36V
- Backup Time: 7-11 min (internal batteries) to 18 hours using External Battery Packs (EBP)
- Extended Battery Packs: EBP1
- Battery Type (EBP): 2 strings of (3) 12V 9AH/36V
- Recharge Time: Typically < 4 hours
- Physical:
- Unit Dimensions (WxDxH): 17.3" x 17.7" x 3.4"
- Shipping Dimensions (WxDxH): 22.3" x 23.5" x 9.2"
- Unit Weight: 39.7 lbs
- Shipping Weight: 50.7 lbs
- Line Cord: 5-15P
- Receptacles: (6) NEMA 5 - 15R
- Communication Interface: RS-232 or SNMP (optional card)
- Environment:
- Operating Temperature: 0° - 40°C (32° - 104°F)
- Audible Noise: < 50dba at one meter
- Altitude: 6000 ft (1830 m) above sea level
- Warranty: Three years electronics / Three year batteries
- Approvals: North America UL cUL FCC
- Indicators and Alarms:
- LCD Visual Display: Input/output voltage & frequency, on-line mode, back up mode, battery capacity, load level
- Audible Alarm: Beep every 4 sec (on battery)
- UPS Fault: Continuous beeping sound and LCD display
