Tripp Lite PDUMV30HV Single-Phase Metered PDU with 30-Outlets, 10' Cord, Vertical Rack Unit

OUR PART #: PDUMV30HV MFR #: PDUMV30HV

Copied to clipboard

Tripp Lite's PDUMV30HV is a single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. ...Read more

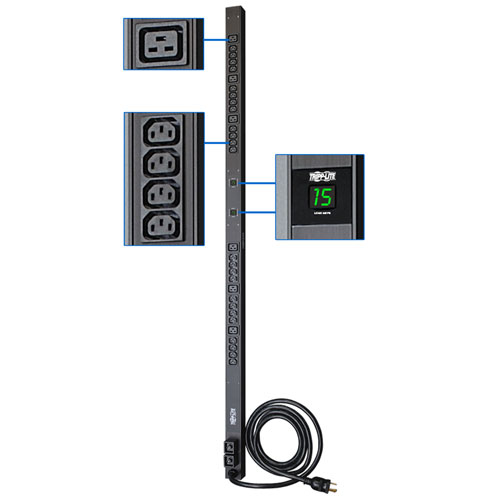

Tripp Lite PDUMV30HV Single-Phase Metered PDU With 30-Outlets, 10' Cord, Vertical Rack Unit Image 1
Tripp Lite PDUMV30HV Single-Phase Metered PDU With 30-Outlets, 10' Cord, Vertical Rack Unit
Our Price: $407.10
List Price: $529.78
You save 23%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Tripp Lite's PDUMV30HV is a single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High-quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories. This PDU offers an ideal means for powering networking equipment in data centers, computer rooms and network closets.

Includes:

  • PDUMV30HV 63.75" basic PDU with owner's manual
  • Set of 2 bolt-on plug retention brackets and installation hardware
  • Set of mounting brackets and installation hardware

Tripp Lite PDUMV30HV Features:

  • Metered single phase 30A 208/240V, 0U 63.75" (162 cm) vertical rackmount PDU
  • Pair of digital meters report output current in amps for each load bank
  • Attached 10 ft (3.05 m) cord with NEMA L6-30P input plug
  • 30 outlets (6 C19, 24 C13) in two separately breakered load banks
  • Toolless button-mount and bolt-down bracket installation hardware included
  • Outlets are arranged in two 15 outlet load banks, each with separate 15A breaker and current metering
  • Bolt-down installation brackets support installation in other racks and additional surfaces

Tripp Lite PDUMV30HV Specifications:

  • Output:
    • Output Capacity Details: 5kW (208V input), 5.8kW (240V input), 4.8kW (200V input); 30A maximum (agency de-rated to 24A continuous)
    • Frequency compatibility: 50 / 60 Hz
    • Output nominal voltage: 200-240V nominal, single phase
    • Overload protection: Outlets are arranged in two separately breakered load banks. The top 15A breaker covers outlets on the upper half, the bottom 15A breaker covers outlets on the lower half of the PDU. Each breakered bank covers 12 C13 and 3 C19 outlets.
    • Outlet quantity / type: 30 total (6 C19, 24 C13)
    • Outlet Type: IEC-C13, IEC-C19
  • Input:
    • PDU Input Voltage: 200; 208; 240
    • Maximum Input Amps (A): 30
    • Maximum Input Amps (A) Details: Agency de-rated to 24A continuous
    • PDU Plug Type: NEMA L6-30P
    • Input cord length: 10 ft (3.05 m)
    • Phase: Single-Phase
  • LEDs, Alarms, & Switches:
    • Switches: N/A
    • Front panel LEDs: Includes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately breakered 15A loading bank.
  • Physical:
    • Shipping Dimensions: 64.5" H x 3.5" W x 4.75" D (163.8 x 8.9 x 12.1 cm)
    • Shipping weight: 13 lbs (5.9 kg)
    • Unit Dimensions: 63.75" H x 2.25" W x 3.75" D (162 x 5.7 x 9.5 cm)
    • Unit weight: 8 lbs (3.6 kg)
    • Material of construction: Aluminum
    • Style: Vertical Rackmount, Wallmount, Raceway, Workbench
    • Form factors supported: 0u vertical installation in equipment racks, plus under-counter and wallmount
    • PDU Form Factor: Vertical (0U)
  • Relative Humidity: 0-95% non-condensing
  • Certifications: Tested to UL60950-1 (USA, Canada), NOM (Mexico)
  • Product Warranty Period (Worldwide): 2-year limited warranty
