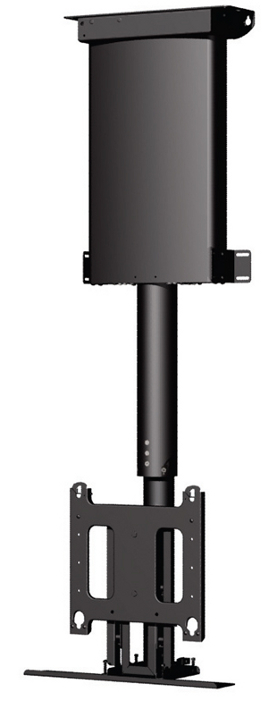

Chief Manufacturing CM2C40U
32 - 61" Automated Ceiling Lift for Display Mount in Black

OUR PART #:  CM2C40U

The CM2C40 from Chief Manufacturing provides a unique automated display mount solution to reveal a flat panel TV out of the ceiling.
Learn More

Add to Cart to See Price

Write the first review.
Chief Manufacturing CM2C40U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The CM2C40 from Chief Manufacturing provides a unique automated display mount solution to reveal a flat panel TV out of the ceiling.

Features:

  • AutoDrive System provides fast and quiet travel atover 2" (51 mm) per second!
  • Customizable store and show positions allowfine-tuning for any installation
  • Collapses to a stored height of only 31" (790 mm)
  • Offers approximately 40" (101.6 cm) of travel
  • Multiple control options, including: serialcommunication, dry contact control and IR remote (included)
  • Q-Latch Mounting System provides increased securityand easy connect/disconnect without tools
  • A unique cable management system allows cables tomove freely with the lift and makes installation clean and hassle free
  • Unique lift design eliminates flat panel TV widthconstraints
  • Compatible with 110/120VAC 60 Hz
  • No preset positions on CM2 lifts

Specifications:

  • Certifications: FCC Approved
  • Color: Black
  • Maximum Extension: 71" (1803.4mm)
  • Mounting Pattern Compatibility (Universal Versions):200 x 200mm - 862 x 517mm
  • Notes: Approximately 40" (101.6 cm) of overall travel
  • Orientation: Landscape
  • Overall Dimensions (H x W x D): 31.3" x 23.8" x 7.8"(794 x 603 x 197mm)
  • Shipping Weight: 140.00 lbs
  • Solution Type: Universal
  • Typical Screen Sizes: 32 - 61"
  • Weight Capacity: 190 lbs (86.2kg)

NOTE: Dimensions shown are for the lift only. TV dimensions must be taken into consideration when designing lift cabinets or enclosures.To ensure this mount works with your equipment check the "Compatibility" tab on Chief's website.
