Atlas IED TSD-DCPDV 1 In 6 Out DC Power Distribution with Fixed and Variable 5-24VDC Outputs

OUR PART #: TSD-DCPDV MFR #: TSD-DCPDV

Copied to clipboard

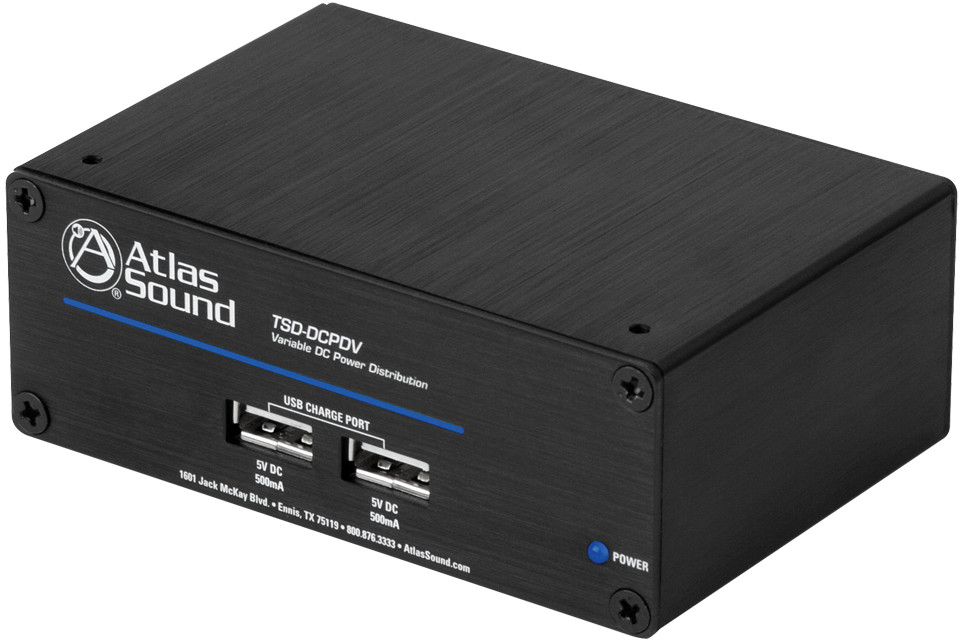

Atlas IED TSD-DCPDV 1 In 6 Out DC Power Distribution With Fixed And Variable 5-24VDC Outputs Image 1
Atlas IED TSD-DCPDV 1 In 6 Out DC Power Distribution With Fixed And Variable 5-24VDC Outputs Image 2
Atlas IED TSD-DCPDV 1 In 6 Out DC Power Distribution With Fixed And Variable 5-24VDC Outputs Image 3
Atlas IED TSD-DCPDV 1 In 6 Out DC Power Distribution With Fixed And Variable 5-24VDC Outputs
Our Price: $100.99
List Price: $123.99
You save 19%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Atlas Sound TSD-DCPDV Variable DC Power Distribution Block is designed to reduce cost and wiring clutter in installations where multiple DC power supplies with the same voltage are required. Each unit has one 24VDC Input, 4 fixed 24VDC Outputs, 2 5VDC USB Charge Ports and 2 regulated variable outputs ranging from 5V - 24VDC. Each output has additional filtering to negate any AC ripple that may be present in the DC signal. Both USB and Variable outputs have a current overdrive protection circuit. The current output also depends on the power supply current rating.

The TSD-DCPDV is part of a full line of Atlas Sound Time Saving Devices. These compact (1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the easiest and in the most efficient and cost-effective way. All models are made from high quality components and include removable individual I/O connectors for quick and precise wiring, separate ground terminals for all I/Os assuring secured connections, and removable level controls that can be replaced with tamper-proof security covers. The TSDs are highly efficient and meet Energy Star™ standards as one 24V DC power supply (available separately) can power multiple Atlas Time Saving Devices.

Audio Applications:

  • Wireless Microphone Power Supplies
  • TSD Power Distribution
  • Reduce AC Outlets from Power Strips
  • Use Less Power

Atlas Sound TSD-DCPDV Features:

  • Power Distribution for Multiple TSDs From a Single PSU
  • 1 In 8 Out Configuration
  • Four (4) Fixed 24VDC Outputs
  • Two (2) Variable 5V - 24VDC Outputs
  • Two (2) USB 5VDC Charge Ports
  • Current Operating Range 1A to 3A
  • DC Filtering Per Channel
  • DC Isolation Per Channel
  • Cable Management System
  • Multiple Mounting Configurations
  • Separate Ground Connections
  • Removable Phoenix Style I/O Connectors
  • Meets Energy Star™ Standards
  • Compact Chassis Design
  • Installation:
    • Government Buildings
    • Medical Facilities
    • Office Environments
    • Churches
    • Restaurants
    • Schools
    • Industrial Facilities
    • House of Worship

Atlas Sound TSD-DCPDV Specifications:

  • DC Voltage Input: 1A-3A, 24V DC, 3A Max
  • DC Voltage Output Fixed: 24V DC, Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPD and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required.
  • DC Voltage Output Fixed USB: 5V DC, 500mA Each Power Supply and Load
  • DC Voltage Variable: Qty 2, Ports 1 Adjustable Voltage, Variable DC Output 5V - 24VDC
  • Dimensions: 1.5" H x 4" W x 2.5" D (3.81 x 10.16 x 6.35 cm)
  • Weight: 6 oz. (0.165 kg)

Note:

More information can be found in the owner's manual located under the "Documentation" tab.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
