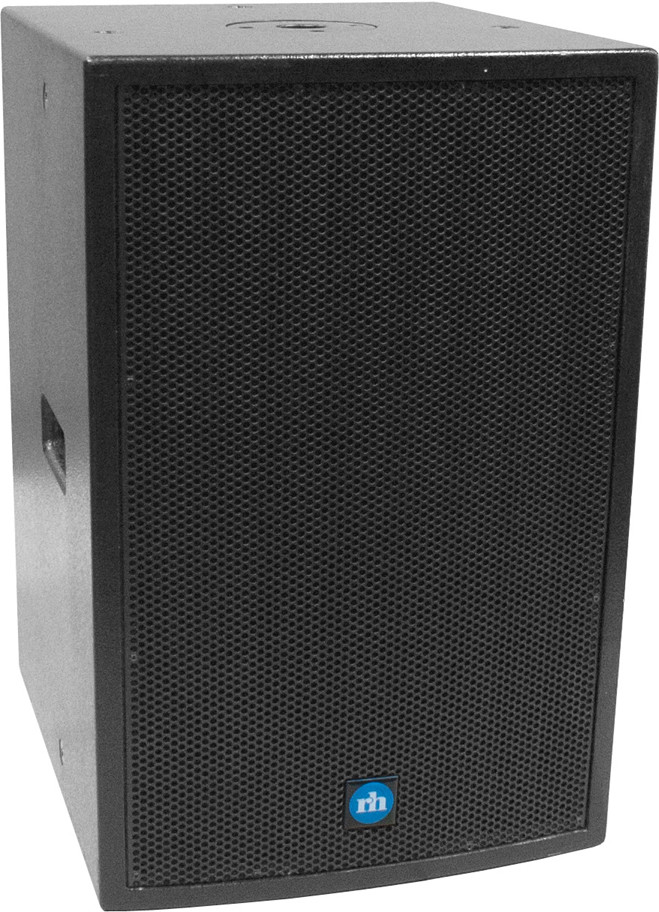

Renkus-Heinz CFX12S-8
12" 500W 8 Ohm Passive Companion Subwoofer

OUR PART #  CFX12S-8

Selected Model Price: $599.00
List Price: $792.00

Save up to 24%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The CFX12S subwoofers were developed as companion pieces to full range CF / CFX series loudspeakers. They provide the high impact sub bass energy needed in many venues and also serve as a mounting base for the loudspeakers.

12-Inch High Performance Subwoofer
Sound that makes performances and audiences truly come alive doesn't come easy. But CF/CFX Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

Advanced options like intelligent onboard amplification and RHAON — the Renkus-Heinz Audio Operations Network — help you build sophisticated sound systems that are easy to use. CF12S and CFX12S subwoofers were developed as companion pieces to full range CF / CFX series loudspeakers. They provide the high impact sub bass energy needed in many venues and also serve as a mounting base for the loudspeakers.

Features:

  • Powerful 12-inch Subwoofers: Outstanding 40 Hz to 120 Hz, 129 dB peak SPL sub-bass performance.
  • Flexible Input Configurations: Choose passive inputs, or go self-powered with the PF1 series intelligent amplifiers, with or without RHAON networking.
  • RHAON Renkus-Heinz Audio Operations Network: All self-powered CF12S series subwoofers are available with RHAON for flexible digital signal distribution, loudspeaker management and control.
  • High Performance, High Power Woofers: With long-throw magnetic structures easily handle 500 Watts of program power.
  • Built-In Lo-Pass Filter: May be bypassed to allow use of an external electronic crossover.

Applications:

  • Virtually any application where high-output, low frequency content is required
  • Permanent Installations
  • High quality music/speech systems and surround systems for houses of worship, schools, performing art centers, night clubs, etc.
  • Portable Applications
  • Live music reinforcement, DJ systems, houses of worship, schools, etc.

Specifications:

  • Sensitivity: 97 dB (1W/1m)
  • Max SPL: 127 dB peak
  • Freq. Response: 40 Hz to 120 Hz
  • LF Driver: 12" woofer, model SSL12-23; 250 W RMS @ 8 Ohms, 500 W Pgm
  • Enclosure: 13-ply hardwood, perforated metal grille
  • Finish: Black, white or custom color optional
  • Power: CFX12S-8
  • Connectors: Screw terminals & looping 4-pin Neutrik SpeakOn style connectors
  • Hardware:
    • 12-point univ. mtg. hdw. (Metric M10 threads)
    • 35 mm (1 3/8") diameter tripod socket Handles
  • Dimensions: 23 1/8" H x 15" W x 17 1/4" D
  • Weight: 50 Lbs (22.7 Kg) net
