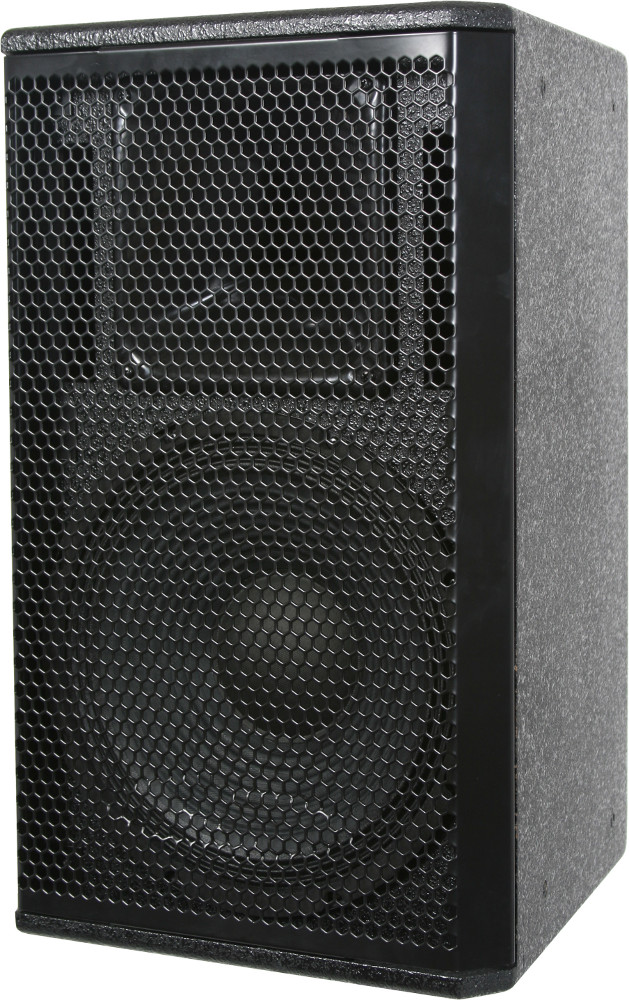

Galaxy Audio CR-12
Core 12 Two-Way 12" Speaker in Black

OUR PART #:  CR-12

The CR-12 CORE 12 is a two-way loudspeaker with 12" woofer and 1" compression driven, constant directivity, asymmetrical horn.
Learn More
Our Price: $299.99
List Price: $419.99
You save 29%!
Write the first review.
Galaxy Audio CR-12
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The CR-12 CORE 12 is a two-way loudspeaker with 12" woofer and 1" compression driven, constant directivity, asymmetrical horn. The CORE 12 is an unpowered 2-way speaker available in white or black textured wood cabinets with integrated handle on the rear of the cabinet. With a sleek cabinet design and robust 16 gauge grill, the CORE 12 will be an excellent speaker in either an installed church setting or in mobile DJ use. The trapezoidal design and removable rubber feet allow the cabinet to be configured to lay on any side for the optimal listening angle. The CORE 12's two-way system is rated at 400W at 8 Ohm and comprised of a 12" woofer and a 1" high frequency compression driver.

The CORE 12 uses a constant directivity asymmetrical rotatable horn and passive crossover for exceptional high end range and convergence. This provides extremely flexible coverage patterns, giving width when needed, and narrowing so that the amount of ambient sound is reduced. The horn pattern is 100 degree/50 degree horizontal by 55 degree vertical, the horn can be rotated in 90┬║ increments so the speaker can be placed in multiple positions.


  • Power Handling: 400 Watts RMS @ 8 Ohms
  • Rotatable Asymetrical Horn: 100/50 degrees horizontal x 55 degrees vertical
  • 20 Integrated M8 threaded suspension points
  • Pole Mount
  • Integrated handle on the rear of the speaker
  • 2 Twist-Lock parallel input jacks plus barrier terminal input.
  • Paintable


  • Power Handling: 400W
  • Impedance: 8 ohms
  • Frequency Response: 62Hz - 18kHz +/- 3dB
  • Woofer Diameter: 12"
  • Horn Type: Constant Directivity, Asymmetrical
  • Input Connectors: 2 x 1/4" / Twist-Lock Jack
  • Speaker Wiring: Woofer in Polarity, Horn out of Polarity
  • Stand Mountable/Suspension Points: 1.75" Stand Cup/20 M8 Size Threaded Suspension Points
  • Cabinet Material: 15mm MDF
  • Cabinet Color: Black (CR12) or White (CR12W)
  • Dimensions: 14.01" W x 22.83" H x 15.74" D (356mm W x 580mm H x 400mm D)
  • Weight: 43.85 lbs (19.88 Kg)
