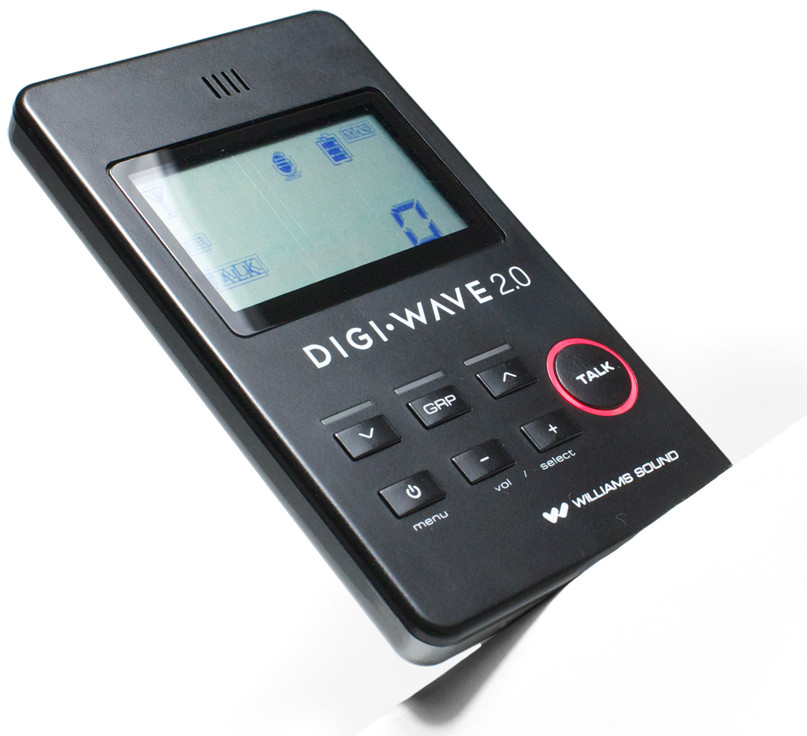

Williams Sound DLT 100 2.0
2.4 GHz Digital Transceiver for use with Digi-Wave 2.0 System

OUR PART #:  DLT-100-2.0

Selected Model Price: $397.00
List Price: $529.00
Save up to 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Williams Sound DLT 100 2.0
Select model: (shipping times are approximate)
Qty:

Similar Products

The Williams Sound DLT-100 2.0 is a portable transceiver capable of transmitting and receiving digital modulated signals up to 100ft outdoors (depending on environmental conditions) and up to 200ft indoors (depending on environmental conditions) to other DLT-100s, DLR 60s or DLR 50s. Operating on the 2.4GHz ISM band, the DLT-100 2.0 has a high resistance to RF interference and can be used in most countries around the world. Four groups can operate simultaneously in two-way mode and fifteen channels simultaneously in interpretation mode. Patented frequency-hopping software greatly reduces interference potential.

An LCD displays mode set-up, battery life, time and RF strength. All controls are on the front panel and also provide access to change set-up.

Williams Sound DLT 100 2.0 Features:

  • Quick Group Change enables the user to quickly change groups without the need to access the menu.
  • Push-to-Talk (PTT) provides a momentary talk button option for Slave Units in 2-way mode.
  • Side tone adjustment: 0db, -6dB and -12dB.
  • Talk "Off" double-beep indication gives the user an audible sound when the TALK button is turned off. Now adjustable up to volume level 37.

Williams Sound DLT 100 2.0 Specifications:

  • Dimensions:  4.1 x 2.4 x 0.4 inches (103 x 62 x 11mm
  • Weight:  2.8oz (80g) including battery
  • Color:  Black and silver
  • Enclosure:  Shatter resistant PC/ABS plastic
  • Battery Type:  Li Polymer with smart charge built into transceiver
  • Battery Life:  Up to 14 hours talk time per charge
  • Charge Time:
    • 5 hours with TFP 045 with cable and international adapters
    • Optional two-bay charger CHG 102
  • Channels:
    • Up to 15 simultaneous channels (Interpretation mode)
    • Up to 4 simultaneous groups (2 way mode)
  • Operating Frequencies:  2.4GHz (ISM band) 2.402 – 2.476GHz FHSS
  • Frequency Response:  150 Hz – 11 kHz
  • S/N Ratio:  69dB (A weighted)
  • THD:  0.33 %
  • Microphone Input:  Internal microphone (disabled when MIC jack engaged) and 3.5mm stereo jack (tip/sleeve) with electret microphone bias, adjustable gain with 63dB range.
  • Audio output:  Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)
  • Internal Speaker (disabled when ear jack engaged):  16mW @ 33 ohms
  • Range:  Up to 100ft outdoors and 200ft indoors (depending on environmental conditions)
  • Modulation:  GFSK, binary CDMA
  • RF Output:  14dBm Max
  • Security Code:  87 bit encryption
  • Controls:
    • Front panel push buttons for volume up/down
    • Group Select
    • Menu access and selection
    • Group Change
    • Time
    • Mic on/off
    • Power on/off
    • Tone control SLOC access and Secure Key access
    • System Reset Button (rear panel)
  • Output:  3.5mm stereo/mono jack 30 pin charging jack with audio out to base stations
  • Side Tone:  -12dB below volume
  • Speaker:  Internal speaker (disabled when ear jack is engaged)
  • Indicators:  LCD (Group, Channel, Volume Level, Battery Status, Mode, Signal Strength)
  • LED’s (Charge Status, Group):  Red LED around talk button when enabled. Amber LED signifying group change feature activated.
  • Maximum presenters:  Two presenters at any given time
  • Approvals:  FCC, Industrie Canada, CE, C-tick, RoHS, WEEE
  • Warranty:  2 years parts and labor (90 days on accessories)
