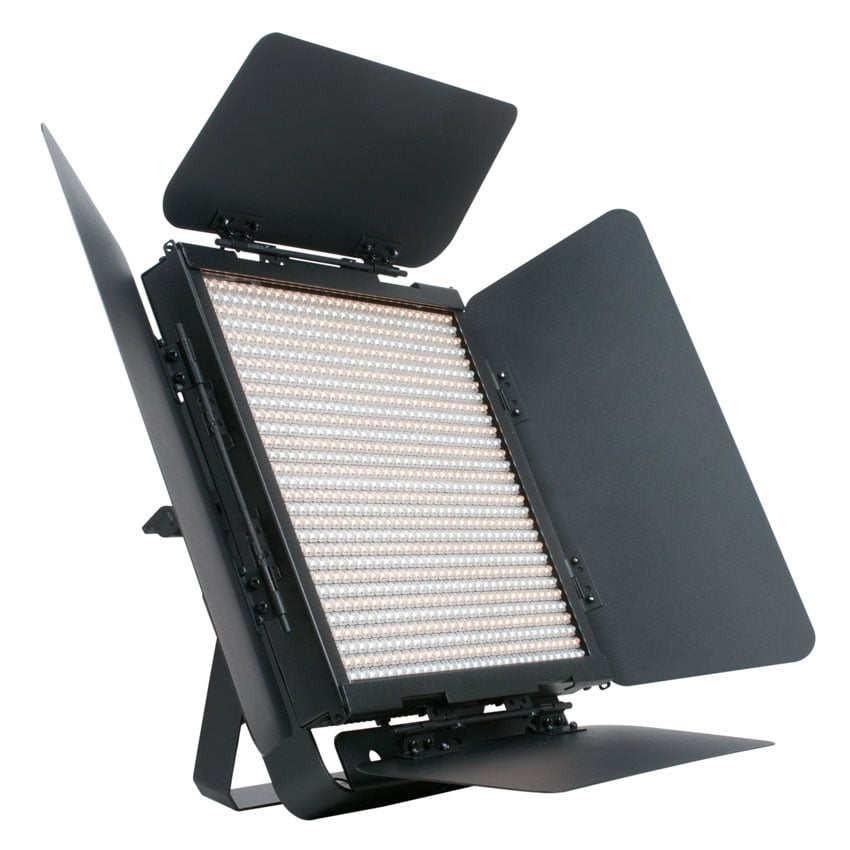

Elation TVL 2000 II CW / WW LED Panel Fixture

OUR PART #: TVL-2000-II MFR #: TVL601

Copied to clipboard

Elation Lighting's TVL2000 II™ features a low-heat, high-CRI dynamic LED array panel consisting of 450 warm white and 450 cool white LEDs... ...Read more

Elation TVL 2000 II CW / WW LED Panel Fixture Image 1
Elation TVL 2000 II CW / WW LED Panel Fixture Image 2
Elation TVL 2000 II CW / WW LED Panel Fixture
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Elation Lighting's TVL2000 II™ features a low-heat, high-CRI dynamic LED array panel consisting of 450 warm white and 450 cool white LEDs, variable manual and DMX controlled color temperature (3,200K - 6,500K) and dimming, adjustable barn doors, built-in magnetic gel/diffuser holder, flicker-free operation for broadcast TV and FILM, 3-pin and 5-pin DMX in/out and linkable power in/out connections, 4-button / 2-dial LCD display control panel, 90W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Elation Lighting TVL2000 II Features:

  • Low Heat High CRI Dynamic LED Array Panel
  • Variable Color Temperature Settings (3,200K - 6,500K)
  • Adjustable Barn Doors
  • Built-In Magnetic Gel/Diffuser Holder
  • Manual and DMX Controlled Color Temp and Dimming
  • Flicker-Free Operation for Broadcast TV and FILM
  • Multiple Unit Power Linking
  • Power cable

Elation Lighting TVL2000 II Specifications:

  • Source: (450) Warm White + (450) Cool White LEDs
  • Photometric Data:
    • 750 LUX 70 FC @6.6’ (2M) (30° Warm White 3,200K)
    • 1300 LUX 121 FC @6.6’ (2M) (30° Cool White 6,500K)
    • 2000 LUX 186 FC @6.6’ (2M) (30° Full On 4,500-5,000K)
  • Effects:
    • Variable Color Temperature (3,200K - 6,500K)
    • Electronic Dimming (0% - 100%)
  • Controls/Connections:
    • 3 DMX Channel Modes (2/2/3)
    • Manual and DMX Color Temperature and Dimming
    • 4-Button and 2-Dial Control Panel
    • LCD Menu Display
    • 3-pin and 5-pin DMX In/Out
    • Linkable Power In/Out
  • Dimensions (LxWxH): 14.6" x 13" x 4.3" (371 x 330 x 109 mm)
  • Weight: 15 lbs. (6.8 kg)
  • Electrical/Thermal:
    • AC 100-240V - 50/60Hz
    • 90W Max Power Consumption
  • Approvals/Rating:
    • CE Approved
    • cETLus Approved
    • RoHs Compliant
    • IP20 Rated
  • Installation:
    • Rigging: Clamp or Stand (not included)
    • Working Position: Any (360°)
