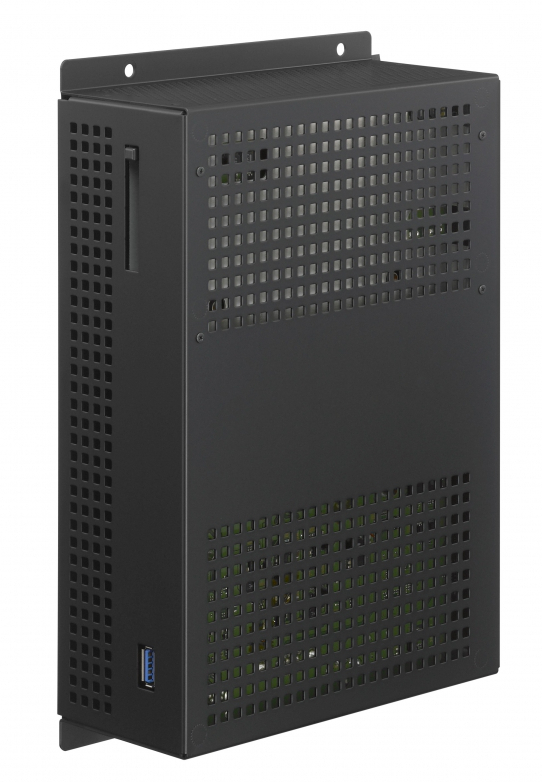

Sony BKM-XP1
4K SxS Media Player for PVM-X300 Monitor

OUR PART #  BKMXP1

Our Price: $3,369.98
List Price: $3,500.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

With Sony's BKM-XP1 4K Sxs player, this will allow the PVM-X300 professional video monitor to play XAVC content in 4K and HD. The BKM-XP1 is an optional SxS player that attaches to the back of the PVM-X300 professional video monitor. The BKM-XP1 has an SxS memory card slot and can play XAVC content (4K/HD) recorded on an SxS memory card on the monitor.

You can now combine the PVM-X300 with an optional 4K SxS player for easy playback of 4K content. Simply insert the newly developed SxS PRO+ high-speed memory media, which supports XAVC™ 4K and XAVC HD high-frame-rate recording, into the player to achieve immediate viewing of 4K camera images and 4K programs from a nonlinear editing system. This frees you from using an expensive, fragile HDD
external player and complicated wired connections.

Thumbnails of each clip recorded on SxS PRO+ media are displayed on the monitor and can be controlled by the monitor’s control panel.

Applications:

  • Plays SxS PRO+ and SxS PRO memory cards*
  • The BKM-XP1 can play clips recorded on SxS memory cards at 4096 x 2160 (4KXAVC Intra) and 1920 x 1080 (HD XAVC Intra) at23.98P/25P/29.97P/50P/59.94P.

Features:

  • Plays high speed SxS PRO+ and SxS PRO memory cards*: SxS PRO+ is recommended for 4K record/playback. The compact and fast SxS PRO+ media is available in 64GB and 128GB. This allows you to record 10 minutes or 20 minutes of 4K XAVC Intra 422 at 60p, and 25 minutes or 50 minutes at 24p.
  • Play back XAVC 4K/HD content: The player allows you to play XAVC Intra 4096 × 2160, 23.98P/25P/29.97P/50P/59.94P or XAVC Intra 1920 × 1080, 23.98P/25P/29.97P/50P/59.94P.
  • Friendly GUI with clip thumbnail function: Direct access from themonitor’s controller, making it simple and quick to play back clipcontents.

NOTE: *Operations are not guaranteed with other memory cards.

Specifications:

  • Power requirements: 12 V (supplied from the monitor)
  • Power consumption: Approx. 20 W
  • Operating conditions: Temperature 0°C to 35°C (32°F to 95°F)
  • Optimum temperature: 20°C to 30°C (68°F to 86°F)
  • Humidity: 30% to 85% (no condensation)
  • Storage and transport conditions: Temperature –20°C to +60°C (–4°F to +140°F)
  • Humidity: 0% to 90%
  • Maximum external dimensions (w/h/d): Approx. 158 × 242 × 66 mm (6 1/4 × 9 5/8 × 2 5/8 inches) - (not including the projected parts)
  • Mass: Approx. 1.0 kg (2 lb 3.3 oz)

Input/Output connectors

  • MOUSE: For a Sony mouse VGP-UMS32 (1)

Accessories supplied

  • Before Using This Unit (1)
  • Operating Instructions (CD-ROM) (1)
  • INSTALLATION MANUAL (1)

NOTE: Design and specifications are subject to change without notice.

Sony BKM-XP1
4K SxS Media Player for PVM-X300 Monitor

OUR PART #  BKMXP1

Product Information:

With Sony's BKM-XP1 4K Sxs player, this will allow the PVM-X300 professional video monitor to play XAVC content in 4K and HD. The BKM-XP1 is an optional SxS player that attaches to the back of the PVM-X300 professional video monitor. The BKM-XP1 has an SxS memory card slot and can play XAVC content (4K/HD) recorded on an SxS memory card on the monitor.

You can now combine the PVM-X300 with an optional 4K SxS player for easy playback of 4K content. Simply insert the newly developed SxS PRO+ high-speed memory media, which supports XAVC™ 4K and XAVC HD high-frame-rate recording, into the player to achieve immediate viewing of 4K camera images and 4K programs from a nonlinear editing system. This frees you from using an expensive, fragile HDD
external player and complicated wired connections.

Thumbnails of each clip recorded on SxS PRO+ media are displayed on the monitor and can be controlled by the monitor’s control panel.

Applications:

  • Plays SxS PRO+ and SxS PRO memory cards*
  • The BKM-XP1 can play clips recorded on SxS memory cards at 4096 x 2160 (4KXAVC Intra) and 1920 x 1080 (HD XAVC Intra) at23.98P/25P/29.97P/50P/59.94P.

Features:

  • Plays high speed SxS PRO+ and SxS PRO memory cards*: SxS PRO+ is recommended for 4K record/playback. The compact and fast SxS PRO+ media is available in 64GB and 128GB. This allows you to record 10 minutes or 20 minutes of 4K XAVC Intra 422 at 60p, and 25 minutes or 50 minutes at 24p.
  • Play back XAVC 4K/HD content: The player allows you to play XAVC Intra 4096 × 2160, 23.98P/25P/29.97P/50P/59.94P or XAVC Intra 1920 × 1080, 23.98P/25P/29.97P/50P/59.94P.
  • Friendly GUI with clip thumbnail function: Direct access from themonitor’s controller, making it simple and quick to play back clipcontents.

NOTE: *Operations are not guaranteed with other memory cards.

Specifications:

  • Power requirements: 12 V (supplied from the monitor)
  • Power consumption: Approx. 20 W
  • Operating conditions: Temperature 0°C to 35°C (32°F to 95°F)
  • Optimum temperature: 20°C to 30°C (68°F to 86°F)
  • Humidity: 30% to 85% (no condensation)
  • Storage and transport conditions: Temperature –20°C to +60°C (–4°F to +140°F)
  • Humidity: 0% to 90%
  • Maximum external dimensions (w/h/d): Approx. 158 × 242 × 66 mm (6 1/4 × 9 5/8 × 2 5/8 inches) - (not including the projected parts)
  • Mass: Approx. 1.0 kg (2 lb 3.3 oz)

Input/Output connectors

  • MOUSE: For a Sony mouse VGP-UMS32 (1)

Accessories supplied

  • Before Using This Unit (1)
  • Operating Instructions (CD-ROM) (1)
  • INSTALLATION MANUAL (1)

NOTE: Design and specifications are subject to change without notice.
