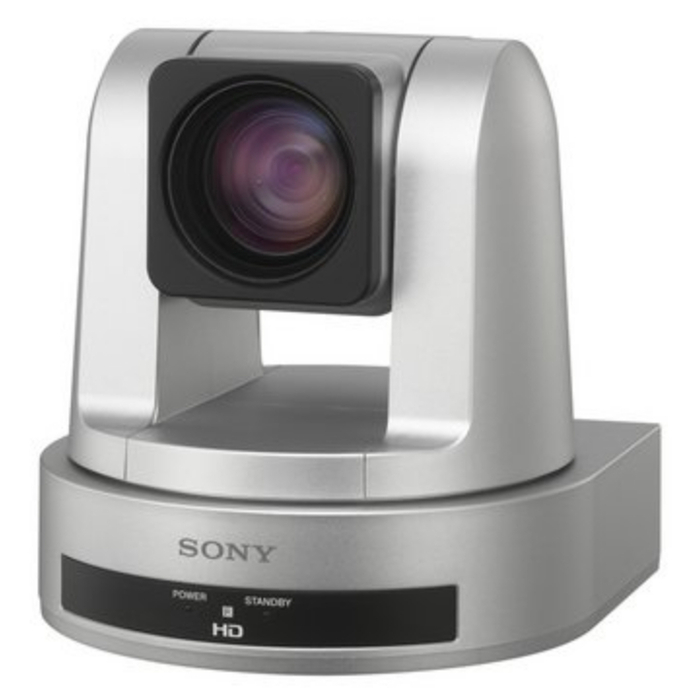

Sony SRG-120DH
12x Zoom 1080P HD PTZ Camera

OUR PART #  SRG120DH

Our Price: $1,738.85
List Price: $2,449.00
You save 29%!
In Stock

Recommended Accessories

For stunning image quality coupled with smooth robotic control at an affordable price, take a look at Sony’s SRG-120DH. The SRG series joins Sony’s widely used EVI and BRC product lines, giving customers a greater choice of high-quality remote camera options. The SRG-120DH is a desktop 1080p/60 HD PTZ camera with a 12x optical zoom. It incorporates Sony’s high sensitivity 1/2.8-type Exmor™ CMOS sensor with the latest imaging technology and field-proven operability. With its extremely wide field of view (71°) and superb image quality, the SRG-120DH is ideal for conference rooms/videoconferencing, remote monitoring, boardrooms, courtrooms, and classrooms.

The SRG-120DH is equipped with cool features including View-DR processing to master the harshest lighting conditions as well as the industry recognized VISCA™ protocol and built-in IP control. The SRG-300H comes in a silver housing.

Sony SRG-120DH Features:

  • High Image Quality - The SRG cameras incorporate Sony’s high-sensitivity 1/2.8 -type Exmor CMOS sensor and the latest View-DR™ technology. Also, their 60p shooting capability realizes smooth, reduced blur life-like images.
  • View-DR (Wide Dynamic Range) Feature - View-DR provides extremely wide dynamic range with Sony’s full-capture Wide-D technology - utilizing the Exmor™ CMOS sensor’s high-speed readout capability and Visibility Enhancer (VE) that provides a high level of chrominance and luminance. Achieves up to 130dB. (29.97fps)
  • XDNR™ Technology - XDNR technology reduces noise and provides clear images in both moving and still objects under low-light conditions.
  • Camera Control - VISCA over IP technology allows for easy control of camera-over-IP connection.

Sony SRG-120DH Specifications:

Camera

  • Image Device: 1/2.8 Exmor CMOS
  • Lens:
    • 12x Optical/12x Digital Zoom Lens
    • Focal Length - 3.9 mm (wide) to 46.8 mm (tele)
    • F1.8 to 2.0
  • Minimum Object Distance: 10mm (wide end) / 1500mm (tele end)
  • Shutter Speed:
    • 1/1 to 1/10000 sec (59.94 Hz system)
    • 1/1 to 1/10000 sec (50 Hz system)
  • White Balance: Auto, Indoor, Outdoor, One-push auto, ATW, Manual
  • Pan Angle/Speed:
    • Angle: +/- 100°
    • Speed: 300°/sec.
  • Tilt Angle/Speed:
    • Angle: +25°/-25°
    • Speed: 126°/sec
  • Horizontal Viewing Angle: 71° (wide)
  • Preset Positions: 16 presets
  • Interface: VISCA protocol with built-in IP control
  • Camera Control Interface: RJ-45 / RS-232C

    Video Output

    • Minimum Illumination: 1.8 lx (50 IRE, F1.8, 30 fps)
    • S/N Ratio: 50 dB
    • Video Output: HDMI
    • Signal System:
      • 1080/59.94p, 50p, 29.97p, 25p
      • 1080/59.94i, 50i
      • 720/59.94p, 50.29.97p, 25p

    General

    • Housing Color: Silver
    • Dimensions (WxHxD): 6-1/8" x 6-1/4" x 6-1/8" (153mm x 156mm x 153mm)
    • Weight: 3 lbs., 3.1 oz. (1.45 kg)
    • Power Requirements: DC 12V (DC10.8 - 13.2V)
    • Power Consumption: 16.8W
    • Operating Temperature: 32° F to +104° F (0° C to +40° C)
    • Storage Temperature: -4° F to +140° F (-20° C to +60° C)
