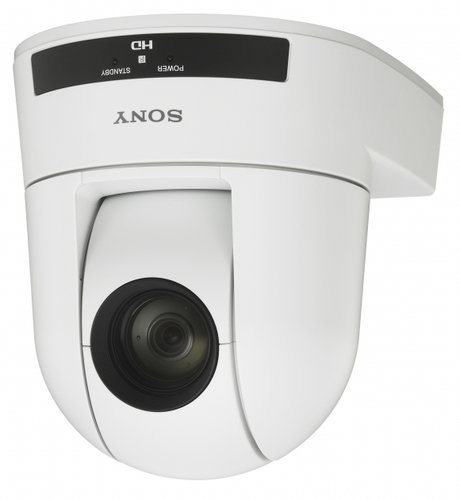

Sony SRG300H/W 1080p/60 HD PTZ Camera with 30x Optical Zoom, White

OUR PART #: SRG300H/W

Copied to clipboard

Delivering stunning image quality coupled with smooth robotic control at an affordable price... ...Read more

Sony SRG300H/W 1080p/60 HD PTZ Camera With 30x Optical Zoom, White Image 1
Sony SRG300H/W 1080p/60 HD PTZ Camera With 30x Optical Zoom, White Image 2
TC8whp3O3BA
2 Videos
Sony SRG300H/W 1080p/60 HD PTZ Camera With 30x Optical Zoom, White
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Delivering stunning image quality coupled with smooth robotic control at an affordable price, the Sony SRG-300H/W is a desktop- or ceiling-mountable PTZ color camera with powerful 30x optical zoom and high frame rate 60fps. This particular model comes in a white housing (black housing is also available-model SRG-300H-sold separately. Contact your Full Compass Sales Pro for more information).

The SRG-300H/W PTZ camera captures high-quality color video images in corporate boardrooms, training suites, and lecture theatres. With remote control provided over standard IP networks, it's ideal for use as either a primary or secondary camera in a wide array of visual imaging applications, including videoconferencing, houses of worship, remote monitoring (small- to medium-sized rooms), telemedicine/distance learning, and entertainment/seminar venues. A highly sensitive 1/2.8-type Exmor™ CMOS sensor ensures detail-packed Full HD pictures with a high horizontal resolution, plus its high frame rate of 60fps delivers more natural, blur-free reproduction of moving subjects.

The exceptional low-light sensitivity (as low as 0.35 lx in High Sensitivity mode) makes this camera ideal for use in near-darkness situations. Unique to Sony, View-DR technology expands dynamic range for clear images under harsh backlighting with extremes of light and dark in the same scene, while XDNR® technology reduces image noise, offering crisp reproduction of still and moving objects in poorly-lit rooms, even when digital zoom is used.

The wide field of view with this camera makes it easier to cover everyone in the room during videoconferences. Smooth and silent PTZ operation with 16 preset camera positions makes it quick and easy to re-frame shots without distracting the presenter or other audience members. Powerful 30x optical zoom is boosted further by 12x digital zoom for high-quality close-ups of subjects located far from the camera – such as a lecturer on the other side of a large auditorium.

For extra flexibility, control can be provided using VISCA command protocols over standard IP networks as well as RS-232 and RS-422. PC control software gives remote adjustment of basic and advanced settings via a simple, intuitive interface. Its HDMI video output simplifies direct connection of the camera to an HD video conferencing system or PC.

Sony SRG-300H/W Features:

  • Full HD Image Quality with 60fps Frame Rate - Seeevery presenter or conference participant more clearly. The 1/2.8-type ExmorCMOS image sensor captures smooth, crisply detailed, Full HD (1920 x 1080 60p)images with extremely low noise – even in low light conditions where othercameras struggle. High frame rate (60fps) operation ensures smoother, morefluid reproduction of moving subjects.
  • View-DR Plus XDNR Technology for Clearer Pictures in AnyLighting Conditions - Unique to Sony, View-DR technology expandsdynamic range for clear images under harsh backlighting with extremes of lightand dark in the same scene. XDNR technology reduces image noise for crispreproduction of still and moving objects in poorly-illuminated rooms.
  • Powerful 30x Optical Zoom - The 30x optical zoom range iscomplemented by 12x digital zoom for frame-filling close-ups with every detailseen clearly. Responsive autofocus ensures that images stay clear and sharp,even at high zoom settings.
  • Fast, Quiet PTZ Operation - The camera’s powerfuldirect drive motor assures quiet, smooth, rapid movement to the targetposition over a wide pan/tilt angle range.
  • Wide 65-degree Viewing Angle - See everyone meetingparticipant in a boardroom with a wide 65-degree horizontal viewing angle.
  • Suitable for Desktop or Ceiling Mounting - Image E-flipgives extra operating flexibility, allowing the camera to be sited on aboardroom table-top or ceiling mounted while maintaining proper imageorientation.
  • Versatile Connectivity Options - Support forRS-232C/RS-422 protocols allows easy connection with a wide range ofperipheral products. The camera can also be controlled via VISCA protocolsover a standard IP network.
  • HDMI Compatible - Provision of an HDMI videointerface simplifies direct connection with a compatible videoconferencingsystem, PC, or HD video monitor.
  • 16 Programmable Presets - 16 pre-programmable settings(controllable via IP or VISCA) allow quick transition from one camera positionto another.
  • Easy Control Via PC - PC control software allowsremote adjustment of basic as well as advanced cameras settings via VISCAprotocols- such as color adjustment and Pan/Tilt speed - from an intuitiveinterface.

Sony SRG-300H/W Specifications:

  • Camera
    • Image Device: 1/2.8 Exmor CMOS
    • Lens: 30x Optical/12x Digital Zoom Lens
    • Focal Length: f=4.3mm (wide) to 129mm (tele)
    • Focal Length - F: F1.6 to 4.7
    • Minimum Object Distance: 10mm (wide end) / 1200mm (tele end)
    • Shutter Speed:
      • 1/1 to 1/10000 sec (59.94 Hz system)
      • 1/1 to 1/10000 sec (50 Hz system)
    • White Balance: Auto, Indoor, Outdoor, One-Push Auto, ATW, Manual
    • Pan Angle/Speed Angle: +/- 170°
    • Speed: 100°/sec
    • Tilt Angle/Speed Angle: +90° / -20°
    • Speed: 90°/sec
    • Horizontal Viewing Angle: 65° (wide)
    • Preset Positions: 16 presets
  • Control Interface:
    • VISCA protocol with built-in IP control
    • Camera Control Interface: RJ-45 / RS-232C / RS-422
  • Video Output
    • Minimum Illumination: 1.4 lx (50 IRE, F1.6, 30 fps)
    • S/N Ratio: 50 dB
    • Video Output: HDMI
  • Signal System:
    • 1080/59.94p, 50p, 29.97p, 25p
    • 1080/59.94i, 50i
    • 720/59.94p, 50p, 29.97p, 25p
  • Housing Color: White
  • Dimensions (WxHxD): 6-1/4" x 6-1/2" x 6-1/2" (157mm x 164mm x 163mm)
  • Weight: 3 lbs, 3.4 oz (1.4 kg)
  • Power Requirements: DC 12V (DC10.8 - 13.2V)
  • Power Consumption: 16.8W
  • Operating Temperature: 32°F to +104°F (0°C to +40°C)
  • Storage Temperature: -4°F to +140°F (-20°C to +60°C)
