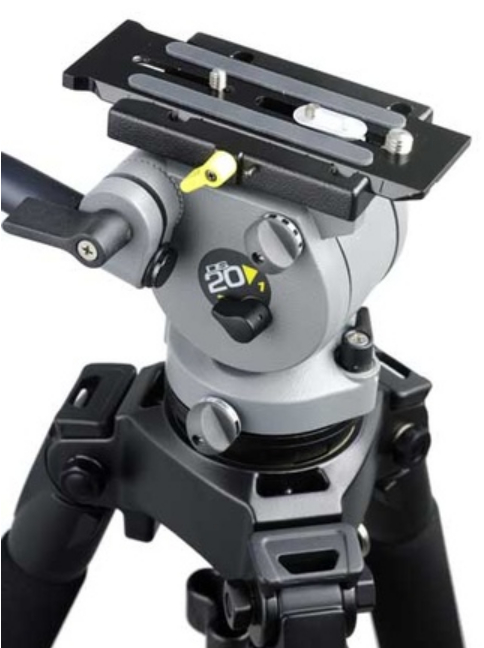

DS20 Fluid Head


Our Price: $1,343.77
List Price: $1,619.00
Call for Special Sale Price!
Write the first review.
Miller Camera Support 184-MILLER
In Stock

Related Products

The DS20 fluid head with a payload range up to 10kg provides an economical alternative for HDV/P2HD/XDCAM EX cameras using additional on board accessories or configured for small studio use. The dual position counterbalance allows balancing of cameras both in standard configurations or heavier configurations.

The DS20 fluid head is designed for maximum stability, accuracy and repeatability and includes 4 precision ball bearings and a fluid drag plate system in the pan and tilt assembly to deliver true fluid drag performance over a wide temperature range and payload. The DS20 fluid head also includes a friction drag adjustment.

The DS20 fluid head will give best performance when used on Miller SOLO DV (#1630, #1501) or Toggle Lightweight DV (#440, #420) tripods. This will ensure maximum system stability to suit any professional set-up. The DS20 fluid head will fit most industry standard 75 mm tripods as well, please refer to manufacturers’ manual for mounting details.


  • HDV/P2HD/XDCAM EX camcorders from 5 to 10 kg (11 - 22 lbs)
  • Fluid drag system constant in all temperature ranges
  • Quick release, sliding camera plate: Camera plate choice: 1/4” & 3/8” screws or 1/4” & pin
  • Selectable counterbalance system
  • Pan/tilt locks utilising floating calliper type disc brakes
  • 75mm ball levelling with bubble level


  • Payload Range: 5 - 10kg (11-22 lbs)
  • Payload Capacity: 10.00 kg (22 lbs)
  • Weight: 1.75 kg (3.9 lbs)
  • Camera Platform Type: Quick release 60mm sliding camera plate
  • Camera Plate: Std 1/4" + pin & 1/4" & 3/8" screws
  • Mounting: 75mm Ball levelling
  • Tilt Drag: Fluid drag plate system with friction boost
  • Tilt Range: +90/-75°
  • Tilt Lock: Calliper disc brake system
  • Pan Drag: Fluid drag plate system with friction boost
  • Pan Range: 360°
  • Pan Lock: Calliper disc brake system
  • Counter balance System: 2 selectable positions
  • Temperature Range: -40°C- +65°C
  • Pan Handle: Fixed length
  • Depth Including Camera Platform: 145 mm (5.7 in)
  • Body Width: 72 mm (2.8 in)
  • Height Above Bowl: 137 mm (5.4 in)
