Ace Backstage Co. BRK104
Double Wide Pocket Brackets

OUR PART #:  BRK104

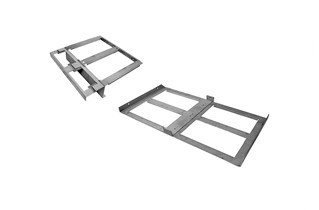

The #BRK102 and #BRK104 are Bracket Kit Assemblies for use with ACE Back Boxes.
Learn More
Our Price: $117.22
List Price: $142.23
You save 18%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. BRK104
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The #BRK102 and #BRK104 are Bracket Kit Assemblies for use with ACE Back Boxes. Once assemblies are installed, they become model numbers #BRK102BBX and #BRK104BBX which can be used together with Super Pocket Bezels and Lids to build complete Super Pocket Assemblies.

This modular aspect of ACE Stage Pockets allows for "just in time" delivery of needed parts for each phase of construction and allowing for design modifications at many different intervals including after concrete pour.

For an example, if original design specifications change after concrete has been set around a full or doublewide backbox, you can double your original connectivity in the same backbox by installing a Bracket Kit Assembly, and modifying your phase #3 order to include Super Pocket Bezels and Lids in place of Standard Vertical Slant Panel Pockets.

Features:

  • DURABLE CONSTRUCTION: Precision die formed to always be perfectly square-16 ga Galvaneal.
  • ASSEMBLY: Mates easily with ACE Backbox screw holes, even when backbox is encapsulated in concrete.
  • SIMPLE PANEL INSTALLATION: Bracket Kit Assemblies provide horizontal panel mounts inside the backbox. All CONNECTRIX System Pocket Panels will line up to mate perfectly with the panel section of the bracket assembly. The BRK102 Assembly also has a A/C Raceway section that requires A/C Cover Plates (see below)
  • AC RACEWAY: BRK102 Bracket Kit Assemblies include a single gang isolated raceway, providing the mounting surface for (2) single gang A/C receptacles and Cover Plates (DC/DB)
  • FLEXIBILITY: Bracket Assembly Kits allows for design modifications at many different installation intervals, including after concrete pour.
  • UL LISTED: UL Listed compliance Standard 514A in combination with inner floor pocket file FLOOR BOX 44LK.
