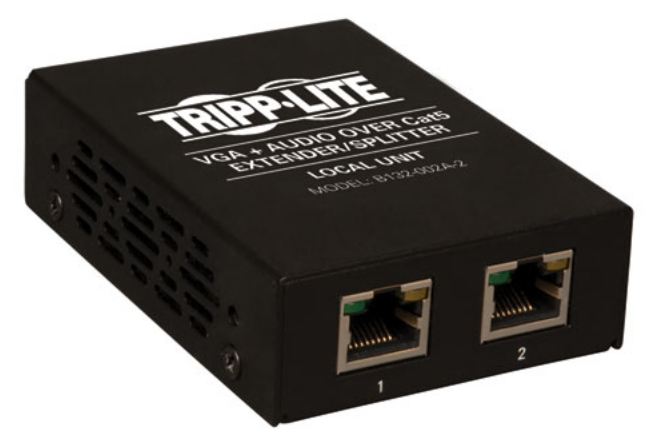

Tripp Lite B132-002A-2
VGA + Audio over Cat5 Extender 2-Port Transmitter

OUR PART #  B132-002A-2

Our Price: $108.38
List Price: $136.00
You save 20%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Tripp Lite's B132-002A-2 allows you to split a single VGA Video and Audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).

The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.

For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wall mounted, rack mounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Tripp-Lite B132-002A-2 Includes:

  • 2 Port Extender/Splitter local (Transmitter) unit
  • Mounting hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A)
  • Owner's Manual

Tripp-Lite B132-002A-2 Features:

  • Splits a single VGA Video and Audio signal into 2
  • A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
  • Extends a 1920 x 1440 (60Hz) Video and Audio signalup to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY(Cat5) and N222-01K-GY (Cat6)
  • EDID copy feature ensures optimal display compatibility
  • Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
  • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location
  • A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver.
  • A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted.
  • Ideal for digital signage situations, such as retail, shools, churches, etc.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp-Lite B132-002A-2 Specifications:

  • Overview:
    • Cable Type: VGA
    • Display Style: Splitter
  • Physical:
    • Shipping weight: 1.1 lbs / 0.5kg
    • Unit Dimensions (HWD): 1 x 2.5 x 3.7 in / 2.54 x 6.35 x 9.40cm
    • Unit weight: 0.45 lbs / 0.20kg
    • Color: Black
  • Connections:
    • Connector A: HD15 (FEMALE)
    • Connector B: 3.5MM (FEMALE)
    • Connector C: (X2) RJ45 (FEMALE)
  • Warranty:
    • Product Warranty Period (Worldwide): 1-year limited warranty

Tripp Lite B132-002A-2
VGA + Audio over Cat5 Extender 2-Port Transmitter

OUR PART #  B132-002A-2

Product Information:

Tripp Lite's B132-002A-2 allows you to split a single VGA Video and Audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).

The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.

For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wall mounted, rack mounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Tripp-Lite B132-002A-2 Includes:

  • 2 Port Extender/Splitter local (Transmitter) unit
  • Mounting hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A)
  • Owner's Manual

Tripp-Lite B132-002A-2 Features:

  • Splits a single VGA Video and Audio signal into 2
  • A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
  • Extends a 1920 x 1440 (60Hz) Video and Audio signalup to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY(Cat5) and N222-01K-GY (Cat6)
  • EDID copy feature ensures optimal display compatibility
  • Can further expand the range and number of monitors/speakers by adding B132-110A repeaters
  • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location
  • A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver.
  • A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted.
  • Ideal for digital signage situations, such as retail, shools, churches, etc.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp-Lite B132-002A-2 Specifications:

  • Overview:
    • Cable Type: VGA
    • Display Style: Splitter
  • Physical:
    • Shipping weight: 1.1 lbs / 0.5kg
    • Unit Dimensions (HWD): 1 x 2.5 x 3.7 in / 2.54 x 6.35 x 9.40cm
    • Unit weight: 0.45 lbs / 0.20kg
    • Color: Black
  • Connections:
    • Connector A: HD15 (FEMALE)
    • Connector B: 3.5MM (FEMALE)
    • Connector C: (X2) RJ45 (FEMALE)
  • Warranty:
    • Product Warranty Period (Worldwide): 1-year limited warranty
