196x198 USB 3.0 MADI Interface


Our Price: $2,649.00
List Price: $3,149.00
You save 16%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

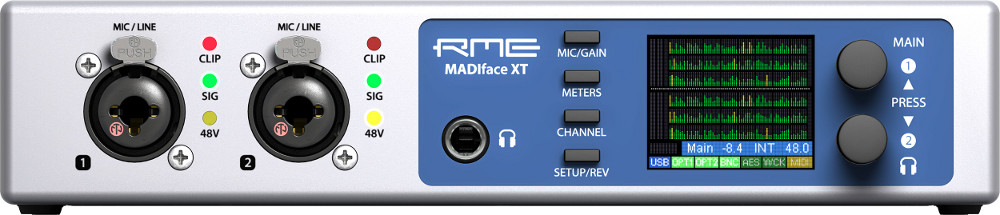

RME's MADIface XT is the world's first USB3 audio interface - and the world's smallest portable interface that provides access to hundreds of audio channels in such a small package. For highest usability and connectivity the XT can also be used with USB 2.0 (computer I/O limited to 70 channels). Its unique PCI Express port connects to External PCI Express cards as well as adapters to Thunderbolt, providing all the fastest interfacing technologies available for maximum channel count and lowest latency in one unit.

To bring together the most complete I/O set for live or studio usage, two digitally controlled high end mic/line preamps, two balanced line outputs and one stereo phones output are included. Full stand-alone operation with remote control over MADI plus TotalMix FX for unlimited mixing, routing and processing open an endless world of possible applications.

For the most convenient desktop operation RME's Advanced Remote Control can be connected (option).

The RME MADIface XT is capable of transferring digital audio data directly into a computer, from any device equipped with a MADI interface. Analog sources can be connected to a stereo analog input, and 2 stereo analog outputs add full monitoring connectivity. Installation is simple, even for the inexperienced user, thanks to the latest Plug and Play technology. The numerous unique features and well thought-out configuration dialogs put the MADIface XT at the very top of the range of digital audio interfaces.

The MADIface XT includes a powerful digital real-time mixer, the Hammerfall DSP mixer, based on RME’s unique, sample-rate independent TotalMix technology. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.


  • Interface for External PCI Express, USB 3.0 and USB 2.0
  • Sample rates: 32 kHz up to 192 kHz, variable (Sync/word clock)
  • Analog input gain range: 60 dB
  • SNR input: 108 dB RMS unweighted, 111 dBA
  • SNR output: 112 dB RMS unweigthed, 115 dBA
  • 3 virtual MIDI over MADI I/Os, one external MIDI I/O
  • TotalMix: 4096-channel mixer with 46-bit internal resolution
  • SteadyClock™: super-stable digital clock, highest jitter suppression
  • Full stand-alone operation, including MIDI remote control
  • Comes with DIGICheck, RME's ultimate measurement, analysis and test tool
  • Drivers:
    • Windows Vista/7/8 (32 bit & 64 bit, multi-client operation of ASIO and WDM)
    • Mac OS X (Core Audio, Core MIDI)

Note: MADIface XT is not compatible with RME Rackmount 'RM-19'

Notes on USB 3.0 Operation:

  • Current Compatibility Information:
    • Fully compatible to Intel's USB 3 implementation, which - on current Windows and Mac computers - is part of the chipset. USB 3 sockets that are connected via an internal cable (not directly soldered onto the motherboard) can cause transmission errors. These are shown in the Settings dialog.
    • Fully compatible to AMD's USB 3 implementation. USB 3 sockets that are connected via an internal cable (not directly soldered onto the motherboard) can cause transmission errors. These are shown in the Settings dialog.
    • Compatible to NEC / Renesas USB 3. Real-world performance and error-free operation depend on the firmware version, driver version and the PCB layout of the respective extension card/motherboard.
    • ASMedia - not compatible.
    • Etron EJ168A - not compatible.
    • Texas TUSB7340 - not compatible.
    • Via VL800/805 - not compatible.
