Quam SYSTEM 18/8
1 ft x 2 ft 8 Ohm Indoor Ceiling Tile Speaker with 4" Woofer, 1" Tweeter

OUR PART #  SYSTEM-18/8

Our Price: $69.97
List Price: $102.00
You save 31%! (Low Price Guarantee)
In Stock

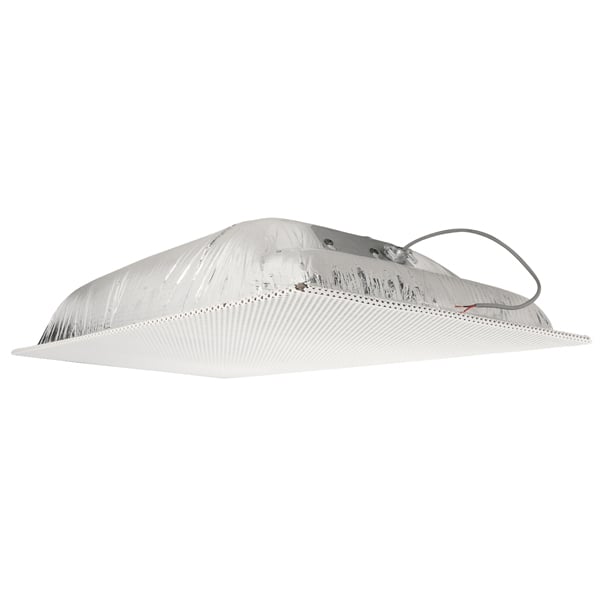

The Quam SYSTEM 18/8 is a 2-way shallow depth, 1 ft x 2 ft ceiling tile replacement loudspeaker system consisting of an 4" O.D. LF woofer, 1" tweeter, and an 8 Ohm impedance. Molded fiber enclosure is 617 CID. Steel baffle with standard perforation and two (2) seismic tie-off points. Cable clamp is included. No assembly required.

Quam SYSTEM 18/8 Features:

  • Intended Use: Indoor Environment
  • Program Material: Signal tones, voice, and music
  • Installation: Mounted parallel to ?oor plane in a 24" wide suspended ceiling tile grid.

Quam SYSTEM 18/8 Specifications:

  • Average Sensitivity: 95 dB SPL, 1W/1M
  • Loudspeaker Power Rating: 20W RMS EIA 426A Standard
  • Calculated Output: 108 dB-SPL 20W/1M
  • Magnet Type & Weight: BeFe Ceramic, 10 oz.Nominal
  • Frequency Response: 40 Hz - 20 kHz EIA 426A Standard
  • Nominal Coverage Angle: 100° Included Angle -6 dB / 2kHz, Half space
  • Audio Connection: 12" Lead
  • Unit Weight: 5.35 lbs

Quam SYSTEM 18/8
1 ft x 2 ft 8 Ohm Indoor Ceiling Tile Speaker with 4" Woofer, 1" Tweeter

OUR PART #  SYSTEM-18/8

Product Information:

The Quam SYSTEM 18/8 is a 2-way shallow depth, 1 ft x 2 ft ceiling tile replacement loudspeaker system consisting of an 4" O.D. LF woofer, 1" tweeter, and an 8 Ohm impedance. Molded fiber enclosure is 617 CID. Steel baffle with standard perforation and two (2) seismic tie-off points. Cable clamp is included. No assembly required.

Quam SYSTEM 18/8 Features:

  • Intended Use: Indoor Environment
  • Program Material: Signal tones, voice, and music
  • Installation: Mounted parallel to ?oor plane in a 24" wide suspended ceiling tile grid.

Quam SYSTEM 18/8 Specifications:

  • Average Sensitivity: 95 dB SPL, 1W/1M
  • Loudspeaker Power Rating: 20W RMS EIA 426A Standard
  • Calculated Output: 108 dB-SPL 20W/1M
  • Magnet Type & Weight: BeFe Ceramic, 10 oz.Nominal
  • Frequency Response: 40 Hz - 20 kHz EIA 426A Standard
  • Nominal Coverage Angle: 100° Included Angle -6 dB / 2kHz, Half space
  • Audio Connection: 12" Lead
  • Unit Weight: 5.35 lbs
