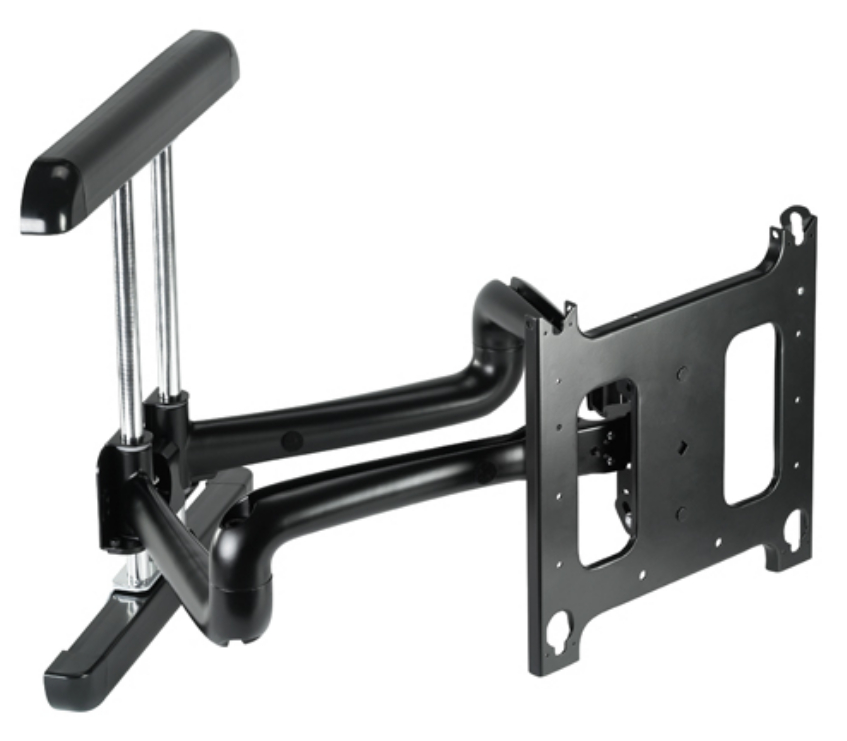

Chief Manufacturing PDR2029B
Large Flat Panel Swing Arm Wall Display Mount with 37" Extension in Black

OUR PART #:

The PDR2029B from Chief Manufacturing is a swing arm mount that allows for perfect flat panel display placement and ensures ideal viewing from any angle.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

The PDR2029B from Chief Manufacturing is a swing arm mount that allows for perfect flat panel display placement and ensures ideal viewing from any angle. A useful mount, especially when displaying digital signage.

NOTE: To ensure this mount works with your equipment check the "Compatibility" tab on Chief's website.

Features:

  • Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
  • Post-installation height adjustment up to 1" (25 mm) for ultimate installation flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Extends 37" (93.98 cm) for viewing from any angle, and remains low-profile in home position
  • CableTrac System provides built-in cable management channels inside the arms for a clean installation
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen).

Specifications:

  • Color: Black
  • Lateral Shift: 9" (228.6mm)
  • Manual Height Adjustment: 1
  • Maximum Extension: 37" (939.8mm)
  • Minimum Depth: 3.4" (86.4mm)
  • Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm

Notes:  Depth and Extension do not include interface bracket (adds 0.5 - 1.5")

  • Orientation: Landscape, Portrait
  • Overall Dimensions (H x W x D): 22.0" x 39.5" x 3.4" (560 x 1003 x 86mm)
  • Post-Installation Leveling (Roll): Yes
  • Shipping Weight: 70.75 lbs
  • Solution Type: Custom
  • Tilt: + 5┬░ , - 15┬░
  • Typical Screen Sizes: 42 - 71"
  • Wall Stud Compatibility (inches): 16
  • Weight Capacity: 200 lbs (90.7kg)
