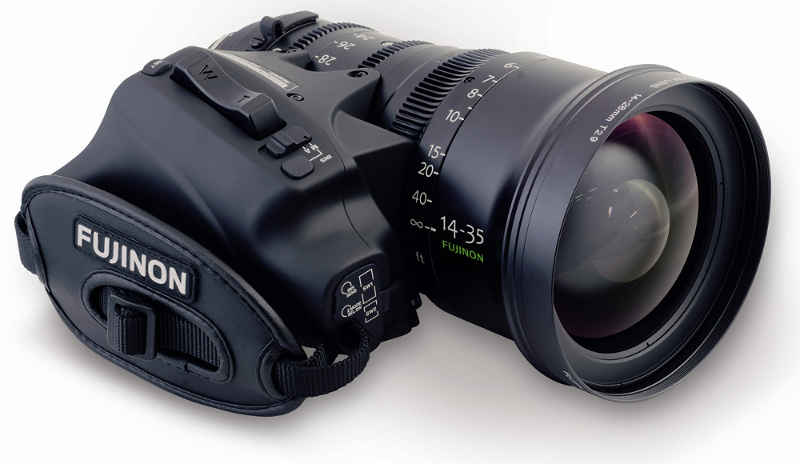

Fujinon ZK2.5X14 14-35mm T2.9 Premier ZK Cabrio PL Compact Zoom Lens with Digital Servo

OUR PART #: ZK2.5X14

Copied to clipboard

Designed using the latest proprietary optical simulation software... ...Read more

Fujinon ZK2.5X14 14-35mm T2.9 Premier ZK Cabrio PL Compact Zoom Lens With Digital Servo Image 1
eVtMCVlqefc?rel=0
9 Videos
Fujinon ZK2.5X14 14-35mm T2.9 Premier ZK Cabrio PL Compact Zoom Lens With Digital Servo
Our Price: $26,879.67
List Price: $32,000.00
You save 16%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Designed using the latest proprietary optical simulation software, the ZK2.5x14 from Fujinon is a PL 14-35mm wide angle lens that offers exceptional optical performance in the center of the image and in the corners of the frame. The digital servo’s 16-bit encoding assures operators that all lens data output—including the position of the zoom, iris, and focus—is extremely accurate. The PL 14-35mm lens supports Lens Data System (LDS) and /i metadata formats, and can be controlled using cinema industry standard wireless controllers as well as existing FUJINON wired and wireless units.

The PL 14-35mm Cabrio lens has a detachable digital servo drive. The Cabrio can be used as a self-contained ENG-style lens or cine style lens. Cinematographers will also be right at home with this lens. With the detachable drive removed, the lens is set to accept industry standard cine motors and matte boxes. The 14-35mm lens is lightweight and comfortable to use with today’s smaller 4K cameras. For shooters looking for a lightweight zoom that can be used as a handheld, capturing wide angles in tight spaces, it’s ideal.

The PL 14-35 covers 31.5mm sensor size on a digital cinema style camera. While sensors on standard broadcast cameras are all the same size, sensors on digital cine cameras vary greatly. This new zoom ensures the image captured will cover large sensors for optimal, full-frame resolution. A nine-blade iris part of the design as well, creating the most natural-looking imagery possible.

The NEW Cabrio lenses present a breakthrough design in PL lenses. Cabrio lenses are designed to be the most versatile. The removable ENG style digital drive has focus, iris and zoom motors which allows for dynamic hand-held and documentary style shooting. Fujinon zoom & focus controllers, as well as cine industry standard wired or wireless controllers, can be connected. The 16 bit digital servo can be removed by means of 4 screws. To reattach to the lens, a newly developed self-aligning system is employed for easy and accurate calibration. The lens will accept standard 0.8 geared cine accessories. Power to the lens is through an external connector or the hot shoe Lens data output is provided.

Fujinon Inc ZK2.5X14 Features:

  • Detachable Digital Drive Unit
  • Flange Focal Distance Adjustment
  • LDS & /i Compatible
  • Lens Hood Optional - Accepts M114 Filter

Fujinon Inc ZK2.5X14 Specifications:

  • Camera Format: PL Mount
  • Focal length: 14 - 35mm
  • Zoom range: 2.5x
  • Maximum Photometric Aperture T-No.: 1 : 2.9
  • Iris Blades: 9
  • Focus Rotation: 200°
  • Zoom Rotation: 120°
  • M.O.D. from image plane: 2 ft (0.6m)
  • Object dimensions at M.O.D.:
    • 16 : 9 Aspect ratio*
    • 14mm 701 x 394mm
    • 35mm 193 x 109mm
  • Angular field of view:
    • 16 : 9 Aspect ratio*
      • 14mm 88°52' x 57°45'
      • 35mm 42°49' x 24°53'
    • Macro: Available
    • Filter thread: M111 (Protection Filter Included)
    • Diameter x Length: 4.49" x 9.10" (114 x 231mm)
    • Weight: 6.39 lbs (2.9kg)
  • NOTE: *Sensor size: 27.45 x 15.44 mm
