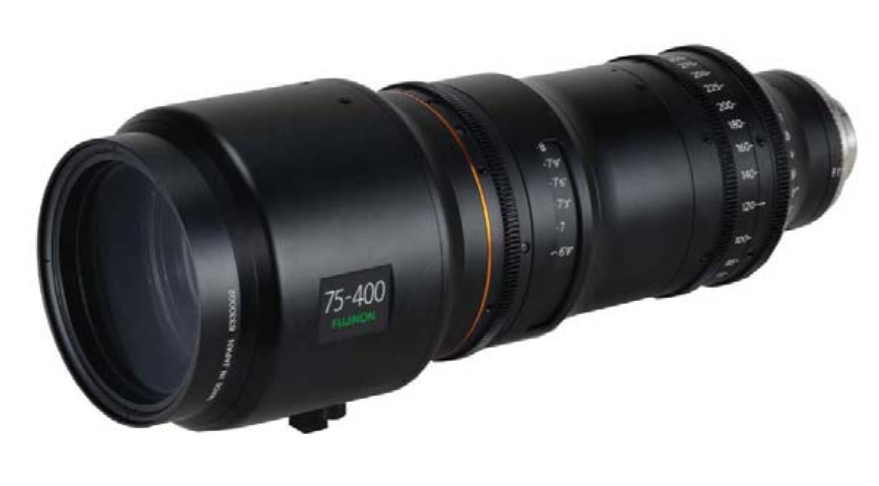

Fujinon Inc HK5.3X75
75-400mm T2.8-3.8 Premier PL 4K+ Cine Zoom Lens

OUR PART #:  HK5.3X75

The HK5.3x75 is a member of Fujinon's Premier PL 4K+ series of zoom lenses.
Learn More

Call for price! Not available online.
List Price: $96,000.00

Similar Products

The HK5.3x75 is a member of Fujinon's Premier PL 4K+ series of zoom lenses. Designed for current and emerging digital cinema motion picture and 35mm format film cameras, Fujinon’s PL Series offer T-stop, focal range and optical performance previously unavailable in a family of PL zooms. With workable size, industry-inspired functionality and focal range from 14.5mm to 400mm, these zooms provide top performance and cost efficiency.

Cinematographers ask for the new Fujinon Premier PL 75-400 mm T2.8-3.8 Zoom when they need to cover a wide range from medium focal length to long telephoto. This is an important lens for sports, cars, action, wildlife, commercials, exteriors, compression shots, slow-motion, and other situations where you want a long lens, with a fast aperture, in a small and light body. It eliminates lots of scrambling to change lenses at magic hour.

Fujinon Premier PL lenses were designed for highly critical customers. You know who you are — cinematographers and special effects supervisors sitting in the front row of the largest theaters, critiquing every nuance. Yes, you practitioners of the art of green screen, big screen, epics and plates. Identified by it's distinctive gold band and originally designated as Fujinon HK 4K+ zooms, the “Premier” name was selected to be all-inclusive for all current 2K, 4K, 8K, and 35mm film users as well.

It has long been desired to improve upon the optical characteristics and performance of lenses to meet the quality of today’s cine cameras. FUJIFILM engineers exhaustively developed the 4K+ PL mount HK Premier Zoom series utilizing their expertise and knowledge gained from the lens design process honed over many years. The zoom mechanism suppresses aberration change from the WIDE side to TELE end by adopting their exclusive floating method. In addition, the contrast performance is rich, the resolution - superb. The net results are lenses with excellent overall balance. The HK Premier zoom lenses are consistent at every focal length; object distance and T stop combination.

Features:

  • 4K+ ultimate optical performance
  • Focal lengths from 14.5 to 400mm are covered by theset of 4 zoom lenses.
  • Natural Bokeh (blur) thanks to the 9 round blade Iris
  • Color Matching
  • Compatible with Both Digital and Film Cameras*
  • 200 degree focus rotation
  • 136mm front lens diameters
  • 0.8mm Cine gearing
  • Uniformed sizes and shapes of design
  • Available with Feet or Meter scale

NOTE: *The lens is optimized by the use of an optical adaptor.

Specifications:

  • Lens:  75-400 mm T2.8-T3.8mm
  • Focal length: 75-400mm
  • Zoom ratio: 5.3x
  • Max Iris:
      -  T2.8 (75-270mm)
      -  T3.8 (400mm)
  • Min Iris: T22
  • Iris Blades: 9
  • Close focus (from image plane): 2m (6.6 ft)
  • Object size at close focus (wide end)*: 75mm: 580 x326mm
  • Object size at close focus (tight end)*: 400mm: 113 x64mm
  • Angular field of view (wide end)*: 75mm: 18° 11’
  • Angular field of view (tight end)*: 400mm: 3° 26’
  • Front Diameter: 136mm
  • Length: 444mm
  • Weight: 8.9kg / 19.7 lbs
  • Focus Rotation (degrees): 280°
  • Zoom Rotation (degrees): 160°
  • Model Number: HK5.3x75

NOTE: Calculated for 16:9 Aspect ratio with S35 24.0 x 13.5mm gate.
