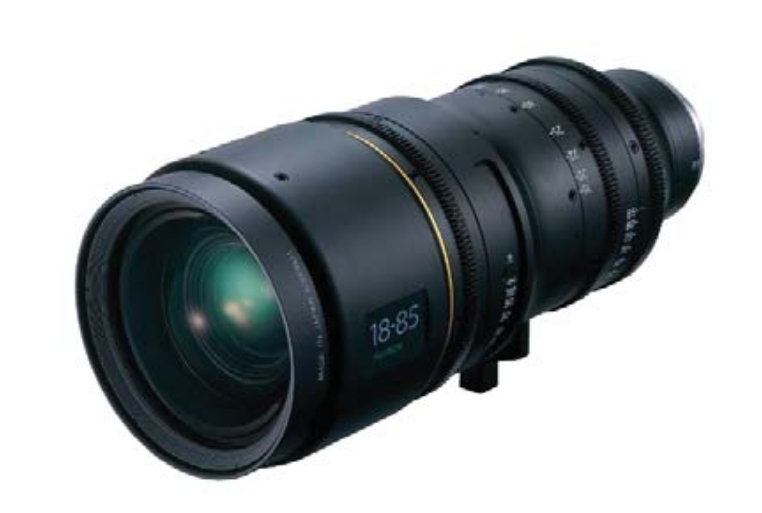

Fujinon Inc HK4.7X18
18-85mm T2.0 Premier PL 4K+ Cine Zoom Lens

OUR PART #:  HK4.7X18

The HK4.7x18 is a Fujinon Premier PL Cine zoom lens that is as fast as most Primes and justas sharp. This lens speeds up production by reducing time spent changing lenses.
Learn More

Call for price! Not available online.
List Price: $87,300.00

Similar Products

The HK4.7x18 is a Fujinon Premier PL Cine zoom lens that is as fast as most Primes and justas sharp. This lens speeds up production by reducing time spent changing lenses. Fujinon Premier zoom lenses were designed for the latest generation of high resolution digital cameras. Up to now, for scenes requiring high speed or highest quality, cinematographers used prime lenses. The need for speed might have meant wide open aperture, but not always speedy lens changes, especially on a rig or crane.

Now, the HK4.7X18 from Fujinon is one of a new set of four 4K+ PL mount zooms, with this version open up to T2.0. That is territory previously occupied only by Primes. Fujinon's 18-85 mm T2.0 zoom is an all-purpose zoom encompassing the most-used focal length range for the majority of dramatic studio and location scenes. The Fujinon 18-85mm Premier zoom has a maximum aperture of T2.0.

It has long been desired to improve upon the optical characteristics and performance of lenses to meet the quality of today’s cine cameras. FUJIFILM engineers exhaustively developed the 4K+ PL mount HK Premier Zoom series utilizing their expertise and knowledge gained from the lens design process honed over many years. The zoom mechanism suppresses aberration change from the WIDE side to TELE end by adopting their exclusive floating method. In addition, the contrast performance is rich, the resolution - superb. The net results are lenses with excellent overall balance. The HK Premier zoom lenses are consistent at every focal length; object distance and T stop combination.

Features:

  • 4K+ ultimate optical performance
  • Focal lengths from 14.5 to 400mm are covered by the set of 4 zoom lenses.
  • Natural Bokeh (blur) thanks to the 9 round blade Iris
  • Color Matching
  • Compatible with Both Digital and Film Cameras*
  • 200 degree focus rotation
  • 136mm front lens diameters
  • 0.8mm Cine gearing
  • Uniformed sizes and shapes of design
  • Available with Feet or Meter scale

NOTE: *The lens is optimized by the use of an optical adaptor.

Specifications:

  • Lens: 18-85 mm T2.0
  • Focal length: 18-85 mm
  • Zoom ratio: 4.7x
  • Max Iris: T2.0
  • Min Iris: T22
  • Iris Blades: 9
  • Close focus (from image plane): 0.82m (2.7ft)
  • Object size at close focus (wide end)*: 18mm: 656 x369 mm 24 mm
  • Object size at close focus (tight end)*: 85 mm: 139 x78mm
  • Angular field of view (wide end)*: 18 mm: 67° 23’
  • Angular field of view (tight end)*: 85 mm: 16° 04’
  • Front Diameter: 136mm
  • Length: 352mm
  • Weight: 6.9kg / 15.2 lbs
  • Focus Rotation (degrees): 280°
  • Zoom Rotation (degrees): 160°
  • Model Number: HK4.7x18

NOTE: Calculated for 16:9 Aspect ratio with S35 24.0 x 13.5mm gate.
