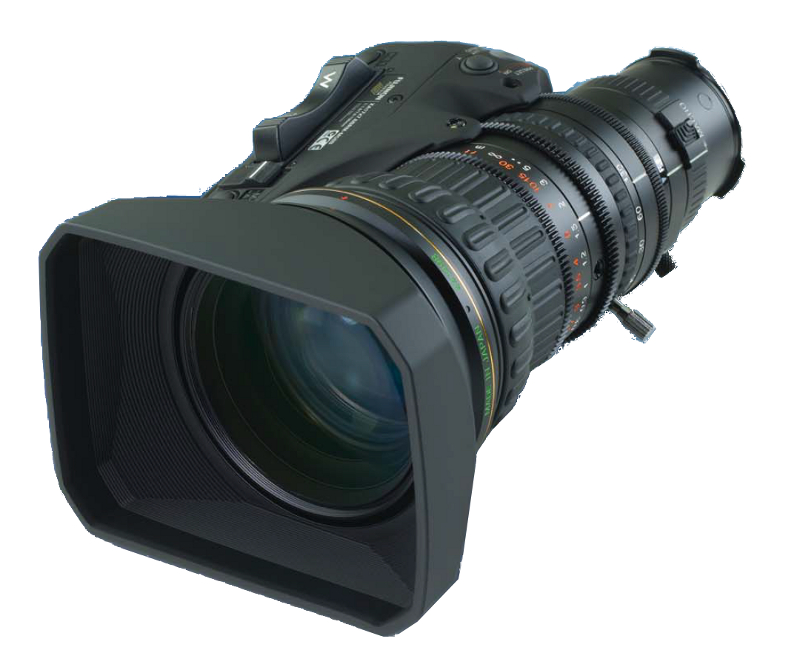

Fujinon Inc ZA17X7.6BRM
2/3" ENG HD Digi Power Zoom Lens

OUR PART #:  ZA17X7.6BRM

Fujinon offers the ZA17X7.6BRM...
Learn More

Call for price! Not available online.
List Price: $11,600.00

Similar Products

Fujinon offers the ZA17X7.6BRM, one of their 2/3" Select Series Value Priced Standard ENG Style HD lenses without extender that offers 17x zoom range and Digi Power servo.

Features:

  • Digi Power: With broadcasting technology rapidly converting to digital, Fujinon has developed a new digital servo control system, DIGI POWER, to enhance the performance of its zoom lenses. State-of-the-art components including a 32-bit RISC processor in the lens, a CPU in each servo demand, optical encoders and high-speed serial communication devices, together with the newly developed digital control circuit, provide 13-bit accuracy in zoom and focus control as well as a variety of new functions.
  • Digital Quick Zoom: Quick Zoom speed is improved to 0.7 seconds end to end. Quick Zoom provides for a rapid zoom movement to the telephoto position to check focus with the simple push of a button. Releasing the button returns the lens to the previously selected zoom position. Quick Zoom can now be performed remotely from the ERD-T22 and ERD-10A-D01.
  • HD Digital
  • Innerfocus
  • Digital Find System: The Focused Intelligent Network Diagnosis system aidsin preventive maintenance and troubleshooting by evaluating various lenses'electronic and mechanical parameters. This data may be stored for futurereference in determining the need for service or adjustments.

Specifications:

  • Camera Format: 2/3"
  • Focal Length: 7.6 - 130mm
  • Zoom Range: 17×
  • Maximum Relative Aperture:
      -  1 : 1.8 (7.6 -102mm)
      -  1 : 2.3 (130mm)
  • Maximum Photometric Aperture T-No.:
      -  1 : 1.9 (7.6 -102mm)
      -  1 : 2.5 (130mm)
  • M.O.D. from the Image Plane: 0.84m
  • M.O.D. from the Front of Lens: 0.6m
  • Object dimensions at M.O.D. / 16 : 9 Aspect ratio:
      - 7.6mm   696 × 392mm
      -  130mm   43 × 24mm
  • Angular field of view / 16 : 9 Aspect ratio:
      - 7.6mm   64°30' × 39°03'
      -  130mm   4°13' × 2°23'
  • Macro: Available
  • Filter thread: M82 × 0.75
  • Diameter × Length: 85 × 203mm / 3.35 x 7.99"
  • Weight (Lens hood excluded): 1.43 kg / 3.15 lbs.
