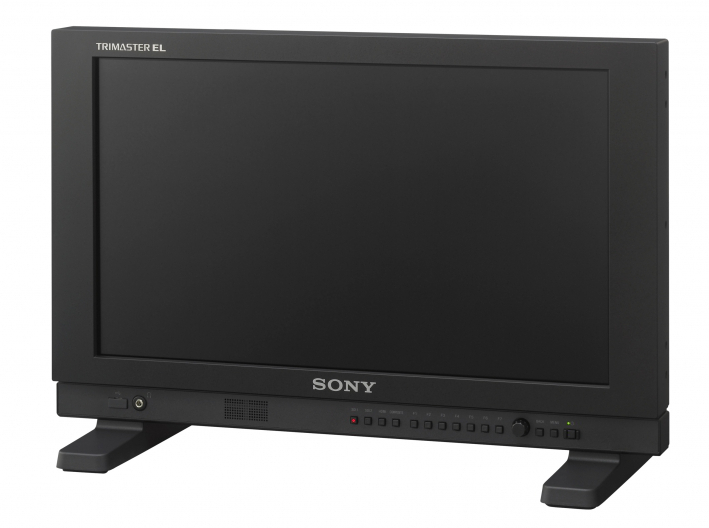

Sony PVM-A170
17" TRIMASTER EL OLED High Grade Picture Monitor


Our Price: $3,731.81
List Price: $5,045.00
You save 26%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Slim, lightweight and robust OLED monitor qualities make this unit ideal for field applications and OB vans - that's what best describes the PVM-A170 OLED monitor from Sony.

The PVM-A170 (17-inch) monitor has a TRIMASTER EL™ OLED panel for outstanding colour accuracy and offers the widest viewing angles of any professional flat-panel monitor on the market, ensuring group monitoring is easy to set-up and exceptionally reliable. It also features an industry-leading, lightweight and shallow body* with an approximately 40 per cent reduction compared to the previous PVM-1741A model. Consequently, it is very easy to carry, even by one person, and this stylish design also includes a detachable handle, robust double-coated paint finish and optional protection panel and corner bumpers**.

NOTE: * Comparing professional broadcast monitors incorporating SDI interface(s) and built-in AC power. ** Requires optional BKM-PP17 protection kit.


  • Stylish lightweight and slim body: The PVM-A170weighs 6.1 kg and is approx. 40% thinner than the previous PVM-1741A model.
  • Wide range of applications: Applications includefield monitoring and installation in a monitor wall and OB van.
  • Industry’s widest viewing angle: Perfect for groupmonitoring.
  • New design innovation: Robust double-coated paint finish and stylish sharpedges.


Picture Performance

  • Panel: OLED panel
  • Picture Size (Diagonal): 419.7 mm (16 1/2 inches)
  • Effective Picture Size (H x V): 365.8 x 205.7 mm (141/2 x 8 1/8 inches)
  • Resolution (H x V): 1920 x 1080 pixels (Full HD)
  • Aspect: 16:9
  • Panel Drive: RGB 10-bit
  • Viewing Angle (Panel Specification): 89°/89°/89°/89° (typical)(up/down/left/right contrast > 10:1)


  • Composite Input: BNC (x1), 1.0 Vp-p ±3dB syncnegative
  • SDI: Input BNC (x2)
  • HDMI Input: HDMI (x1) (HDCP correspondence)
  • Audio Input: Stereo mini jack (x1), -5 dBu 47k ohm orhigher
  • Parallel Remote: RJ-45 modular connector 8-pin (x1)(Pin-assignable)
  • Serial Remote (LAN): RJ-45 modular connector (x1)(Ethernet, 10BASE-T/100BASE-TX)
  • DC Input: XLR-type 4-pin (male) (x1) DC 12 V to 16 V (output impedance0.05 ohm or less)


  • Composite Output: BNC (x1), Loop-through, with 75 ohmautomatic termination
  • SDI Output:
      -  BNC (x2)
      -  Output signalamplitude: 800 mVp-p ±10%
      -  Output impedance: 75 ohmunbalanced
  • Audio Monitor Output: Stereo mini jack (x1)
  • Speaker (Built-in) Output: 1.0 W (mono)
  • Headphone Output: Stereo mini jack (x1)


  • Power Requirements: AC 100 V to 240 V, 0.9 A to 0.5A, 50/60 Hz DC 12 V to 16 V, 6.4 A to 4.8 A
  • Power Consumption:
      -  Approx. 75 W (AC power supply)(max.)
     -  Approx. 60 W (AC power supply) (average power consumption in thedefault status)
  • Operating Temperature:
      -  0°C to 35°C (32°F to95°F)
      -  Recommended: 20°C to 30°C (68°F to 86°F)
  • Operating Humidity: 30% to 85% (no condensation)
  • Storage / Transport Temperature: -20°C to +60°C (-4°Fto +140°F)
  • Storage / Transport Humidity: 0% to 90%
  • Operating / Storage / Transport Pressure: 700 hPa to1060 hPa
  • Dimensions (W x H x D):
      -  435.0 x 274.0 x 65.5 mm*(17 1/4 x 10 7/8 x 2 5/8 inches) (without monitor feet)
      - 435.0 x 296.5 x 165.0 mm (17 1/4 x 11 3/4 x 6 1/2 inches) (with monitor feet)
  • Mass: Approx. 4.2 kg (9 lb 4.2 oz)
  • Supplied Accessories: AC power cord (1), AC plugholder (1), Handle (1) (including 4 screws), Before Using This Unit (1),CD-ROM (1)
  • Optional Accessories: SU-561 Monitor Stand, MB-P17 Mounting bracket,BKM-PP17 Protection kit

NOTE: *Without projection parts.
