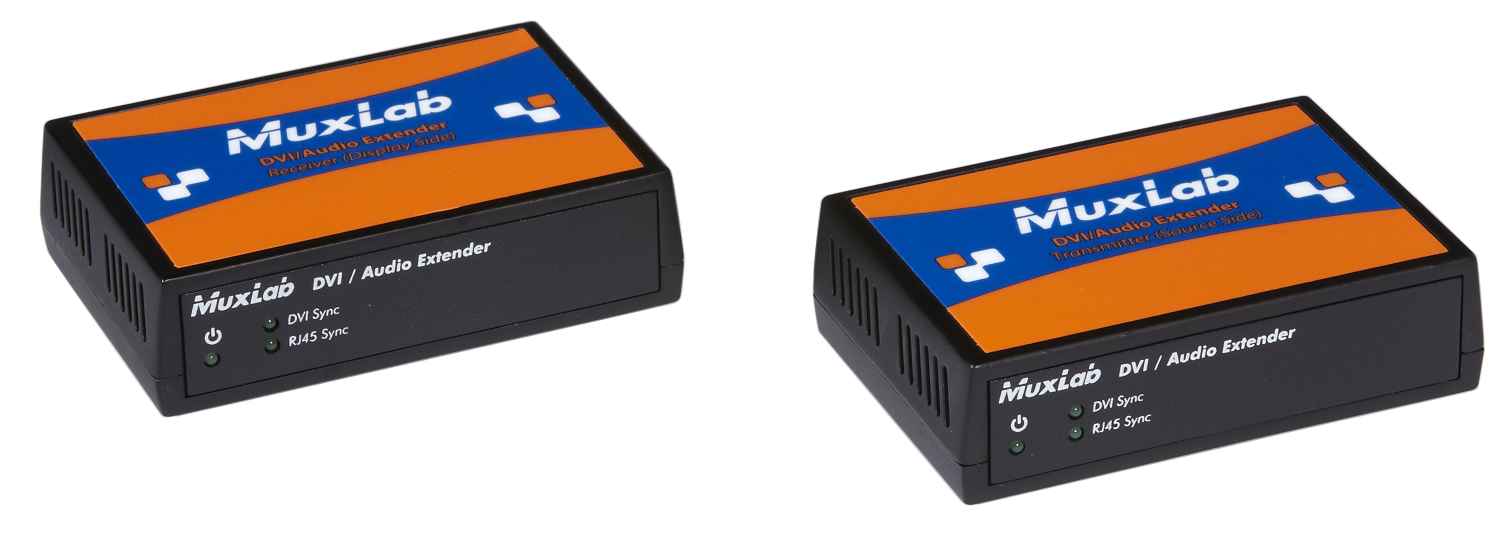

MuxLab MUX-500390
DVI-Audio Extender Kit

OUR PART #:  MUX-500390

Our Price: $388.94
List Price: $440.00
You save 12%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

MuxLab MUX-500390
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DVI/Audio Extender Kit (500390) from MuxLab allows one DVI channel and one line level stereo audio audio channel to be transmitted to 230 ft (70 m) at all resolutions up to 1080p via one (1) Cat 5e/6 cable in a point-to-point configuration. Applications for the 500390 include -  commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, medical information systems, video walls.

MuxLab MUX-500390 Features:

  • HDBaseT technology
  • Extends DVI and stereo audio via Cat5e/6 cable
  • Up to 230 ft (70m) at all resolutions up to 1080p viaone Cat5e/6
  • Supports 4K up to 115 ft (35m)

MuxLab MUX-500390 Specifications:

  • Environment: DVI 1.0 (Single Channel), HDBaseT technology
  • Devices: DVD, plasma, projectors, monitors, TV, PC, laptops
  • Transmission: Transparent to the user
  • Bandwidth: 340 MHz
  • Signals: DVI 1.0 protocol
  • Audio: Does not embed or de-embed audio over DVI Transmits audio in common mode over UTP and completely isolated from the DVI signal
  • Connectors
    • One (1) DVI-D receptacle
    • One (1) RJ45S for Cat5e/6 link
    • One (1) 3.5mm jack for linelevel stereo audio

NOTE: DVI and audio cables not included.

  • Max. Distance via Cat5e/6* (*Based on a maximum length of 6.6 ft (2m) of DVI cable per end)
    • All resolutions up to 1920x1200: 230 ft (70 m)
    • 4K: (3840 X 2160/24,25,30 Hz): 115 ft (35m)

NOTE: When installed in an electrically noisy environment, STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.

  • RJ45 Pin Configuration (Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight-through wiring)
  • RJ45:
    • Pin 1 (R) Pin 2 (T)
    • Pin 3 (R)Pin 6 (T)
    • Pin 4 (R) Pin 5 (T)
    • Pin 7 (R) Pin 8 (T)
  • Cable: One (1) Cat5e/6 or better twisted pair cable required.
  • Power Supply: Two (2) 110-240V/5VDC power supply with interchangeable blades included
  • Power Consumption:
    • Transmitter: 1.6 Watt
    • Receiver: 3.2 Watt
  • Temperature:
    • Operating: 0º to 40º C.
    • Storage:-20º to 85º C.
    • Humidity: up to 95% non-condensing.
  • Enclosure: Aluminum
  • Dimensions: 4.50” x 3.00” x 1.25” (11.4 x 7.6 x 3.2cm)
  • Weight: 2.6 lb (1.2 kg)
  • Compliance: Regulatory: FCC, CE, RoHS Flammability: 94V0
  • Warranty: 2 years
