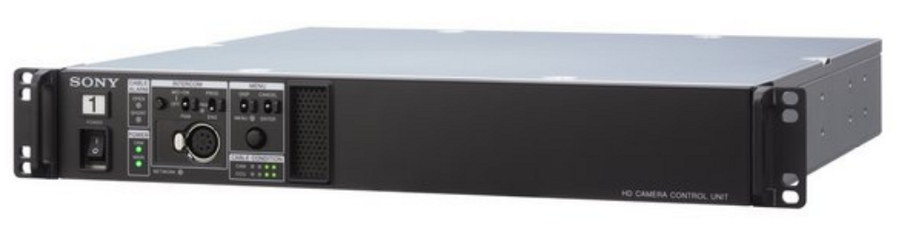

Sony HXCUTX70
Digital Triax Camera Control Unit for HXC-D70 Camera System

OUR PART #  HXCUTX70

Call for price! Not available online.
List Price: $9,350.00


The HXCU-TX70 from Sony is a 19 inches full rack (1.5RU height) unit exclusively designed for use with the HXC-D70 camera for low-latency digital Triax operation. The completed signal interface ports are available on rear side of the HXCU-TX70 such as HD-SDI, SD-SDI, Prompter and Return video. Variety of remote control panels are available to control and adjust the camera parameters -- HKCU-FP2 front control panel that can directly be attached to the front panel of the HXCU-TX70, and RCP-1000/1001/1500/1501 remote control panel.

This CCU also works with PMW-320/350/400/500 camcorders and connects via the CA-TX70 digital triax camera adaptor. You can control the HXC-D70 and PMW-320/350/400/500* up to a maximum distance of 1200 meters (3937 ft.), including the power and signals of Tally, Intercom, Video Return and also Prompter.

NOTE: * CBK-HD02 is required when the CA-FB70 or CA-TX70 is configured with PMW-500. * CBK-CE01 is required when the CA-FB70 or CA-TX70 is configured with PMW-400/350/320.

Features:

  • Digital triax connection: The HXCU-TX70 , working withthe CA-TX70, helps ensure the best picture quality and easy integration of theHXC-D70 and PMW-320/350/400/500 using conventional triax infrastructure up toa maximum distance 1200 mt. with 14.5mm cable and 600 mt with 8.5mm cable.
  • Connection for all signals: The HXCU-TX70 and CA-TX70provide flexible integration and the possibility to extend the operation withall signals (Tally, Intercom, Video Return and Prompter) in full HD.
  • Selectable outputs: The HXCU-FB70 features 4xselectable SD/HD-SDI outputs plus analogue VBS and component, HDMI and S-Videooutputs.
  • Compatible with RCP-1xxx Series remote control panelsand RCP software: The HXCU-TX70 allows you to use the popular RCP-1xxx Seriesremote control panels that well known on all HD system cameras. You are alsoable to lower the cost of the system by using HZC-RCP5 (PC-RCP) to network anddisplay your parameters on a big screen.
  • Operates with CA-TX70 and HKCU-FP2: The HXCU-TX70works seamlessly with the CA-TX70 digital triax adaptor. The HKCU-FP2 optionalfront control panel can be attached onto the HXCU-TX70.
  • Compact size (19” full rack, 1.5RU height) design.
  • Variety of IN/OUT interface ports available includes high performance downconverted SD signals

Sony HXCUTX70
Digital Triax Camera Control Unit for HXC-D70 Camera System

OUR PART #  HXCUTX70

Product Information:

The HXCU-TX70 from Sony is a 19 inches full rack (1.5RU height) unit exclusively designed for use with the HXC-D70 camera for low-latency digital Triax operation. The completed signal interface ports are available on rear side of the HXCU-TX70 such as HD-SDI, SD-SDI, Prompter and Return video. Variety of remote control panels are available to control and adjust the camera parameters -- HKCU-FP2 front control panel that can directly be attached to the front panel of the HXCU-TX70, and RCP-1000/1001/1500/1501 remote control panel.

This CCU also works with PMW-320/350/400/500 camcorders and connects via the CA-TX70 digital triax camera adaptor. You can control the HXC-D70 and PMW-320/350/400/500* up to a maximum distance of 1200 meters (3937 ft.), including the power and signals of Tally, Intercom, Video Return and also Prompter.

NOTE: * CBK-HD02 is required when the CA-FB70 or CA-TX70 is configured with PMW-500. * CBK-CE01 is required when the CA-FB70 or CA-TX70 is configured with PMW-400/350/320.

Features:

  • Digital triax connection: The HXCU-TX70 , working withthe CA-TX70, helps ensure the best picture quality and easy integration of theHXC-D70 and PMW-320/350/400/500 using conventional triax infrastructure up toa maximum distance 1200 mt. with 14.5mm cable and 600 mt with 8.5mm cable.
  • Connection for all signals: The HXCU-TX70 and CA-TX70provide flexible integration and the possibility to extend the operation withall signals (Tally, Intercom, Video Return and Prompter) in full HD.
  • Selectable outputs: The HXCU-FB70 features 4xselectable SD/HD-SDI outputs plus analogue VBS and component, HDMI and S-Videooutputs.
  • Compatible with RCP-1xxx Series remote control panelsand RCP software: The HXCU-TX70 allows you to use the popular RCP-1xxx Seriesremote control panels that well known on all HD system cameras. You are alsoable to lower the cost of the system by using HZC-RCP5 (PC-RCP) to network anddisplay your parameters on a big screen.
  • Operates with CA-TX70 and HKCU-FP2: The HXCU-TX70works seamlessly with the CA-TX70 digital triax adaptor. The HKCU-FP2 optionalfront control panel can be attached onto the HXCU-TX70.
  • Compact size (19” full rack, 1.5RU height) design.
  • Variety of IN/OUT interface ports available includes high performance downconverted SD signals
