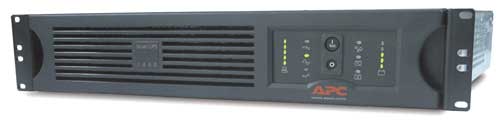

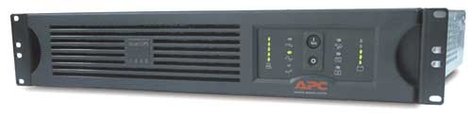

American Power Conversion SUA1000RMI2U
Smart UPS 670W, 1000VA, 230V, 2U Rackmount, 6 Outlets

OUR PART #:  SUA1000RMI2U

APC Smart-UPS, 670W, 1000 VA, Input 120V/Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB, Rack Height 2U.
Learn More
Our Price: $627.20
List Price: $882.00
You save 29%!
Write the first review.
American Power Conversion SUA1000RMI2U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

APC Smart-UPS, 670W, 1000 VA, Input 120V/Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB, Rack Height 2U.

Includes: CD with software, Rack Mounting brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual

NOTE: This is a 230Vof the SUA1000RM2U.

Output

  • Output Power Capacity: 670 Watts / 1000 VA
  • Max Configurable Power: 670 Watts / 1000 VA
  • Nominal Output Voltage: 230V
  • Output Voltage Distortion: Less than 5% at full load
  • Output Frequency (sync to mains): 47 - 53 Hz for 50Hz nominal,57 - 63 Hz for 60 Hz nominal
  • Crest Factor: up to 5 : 1
  • Waveform Type: Sine wave
  • Output Connections: (6) NEMA 5-15R

Input

  • Nominal Input Voltage: 230V
  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 8 feet (2.44 meters)
  • Input voltage range for main operations: 82 - 144V
  • Input voltage adjustable range for mains operation: 75 - 154V

Batteries & Runtime

  • Battery Type: Maintenance-free sealed Lead-Acidbattery with suspended electrolyte : leakproof
  • Typical recharge time: 3 hour(s)
  • Replacement battery cartridge: CURK23, RBC23
  • RBC™ Quantity: 1
  • Typical Backup Time at Half Load: 29.9 minutes (335Watts)
  • Typical Backup Time at Full Load: 8.8 minutes (670 Watts)

Communications & Management

  • Interface Port(s): DB-9 RS-232,SmartSlot,USB
  • Available SmartSlot™ Interface Quantity: 1
  • Control panel: LED status display with load andbattery bar-graphs and On Line : On Battery : Replace Battery : and OverloadIndicators
  • Audible Alarm: Alarm when on battery : distinctivelow battery alarm : configurable delays
  • Emergency Power Off (EPO): Optional

Surge Protection and Filtering

  • Surge energy rating: 459 Joules
  • Filtering: Full time multi-pole noise filtering : 0.3% IEEE surgelet-through : zero clamping response time : meets UL 1449

Physical

  • Dimensions (Max H x W x D): 3.5" x 17" x 18"
  • Weight: 62 lbs net; 69.2 lbs shipping
  • Color: Black

Environmental

  • Operating Environment: 32 - 104 °F (0 - 40 °C)
  • Operating Relative Humidity: 0 - 95%
  • Operating Elevation: 0-10000 feet (0-3000 meters)
  • Storage Temperature: 5 - 113 °F (-15 - 45 °C)
  • Storage Relative Humidity: 0 - 95%
  • Storage Elevation: 0-50000 feet (0-15000 meters)
  • Audible noise at 1 meter from surface of unit: 45 dBA
  • Online Thermal Dissipation: 89.00 BTU/hr

Conformance

  • Regulatory Approvals: CSA,FCC Part 15 Class A,UL 1778
  • Standard Warranty: 2 years repair or replace
  • Equipment protection policy: Lifetime : $150000
